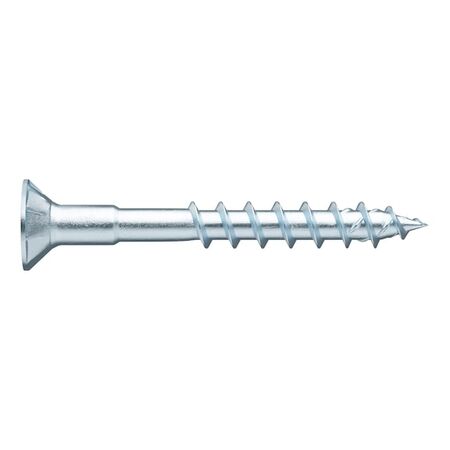

ASSY 4 CSMP HO Universal Screw | Zinc Plated | Countersunk Milling Pocket Head | Partial Thread | @Pack of 250 | by Wurth
The ASSY 4 CSMP HO universal screw is designed for efficient furniture assembly and cabinet construction, featuring a zinc-plated finish and a countersunk milling pocket head for clean installation. With a partial thread and an access hole, it ensures fast, gap-free fastening, making it ideal for wood-wood connections in indoor dry or sheltered areas.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY 4 CSMP HO Universal Screw | Zinc Plated | Countersunk Milling Pocket Head | Partial Thread | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 162645060
Alternatively Known As: Wood screw with access hole, Countersunk wood screw, Partial thread wood screw, Zinc plated wood screw, Furniture screw
Technical Specifications
- Nominal diameter: 4.5 mm
- Length: 60 mm
- Thread length: 33 mm
- Head type: Countersunk milling pocket head with milling pockets
- Head access hole diameter: 2.5 mm
- Head diameter: 8.6 mm
- Head height: 2.6 mm
- Internal drive: RW20
- Thread type: Wood screw thread, partial thread, coarse thread
- Core diameter: 2.7 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Min/max screw-in angle: 0-90 degrees
- Suitable materials: Board ply wood, hardwood, LVL, wood, derived timber products, softwood
- Suitable machines: Würth BS 14-A Combi, Würth BS 12-A Power
- Additional accessory: Cover cap
- Screw requiring approval: Yes, ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.6mm x 60mm x 8.6mm
- Weight: 0.02 kg
Key Features
- Universal partial-thread screw with access hole for fast, gap-free fastening
- Ideal power transmission due to RW drive with larger contact area at the bit
- Countersunk milling pocket head with milling pockets for clean countersinking
- Head recess allows covering with colour-coordinated cover caps with retaining pins
- Optimised milling pockets reduce chipping in coated chipboards up to 4.5 mm diameter
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start ensures optimised recessing and biting of the screw
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force required
Professional Installation Requirements
- Installation by professionals or skilled personnel recommended to ensure proper fastening and compliance with application standards.
Applications
- Furniture assembly
- Cabinet construction
- Wood-wood connections in indoor dry or sheltered areas
Standards & Compliance
- AS/NZS 4785 – Timber fasteners (relevant for wood screws and fasteners)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth ASSY 4 CSMP HO universal screw is available for immediate purchase, ideal for furniture and interior wood construction applications.
