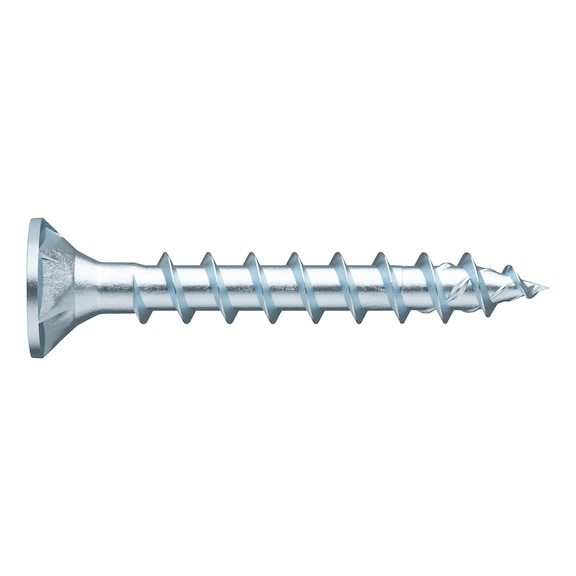

ASSY® 4 CSMP Universal Screw | Zinc-Plated Steel | Full Thread & 90° Milling Pocket Head | @Pack of 200 | by Wurth
ASSY® 4 CSMP universal screws are designed for reliable wood fastening with a full thread and 90° milling pocket head. Ideal for structural wood and timber construction, these zinc-plated steel screws ensure high strength and durability. With an RW drive for optimal power transmission, they provide a tight fit for precise positioning, making them perfect for both professional and DIY applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 CSMP Universal Screw | Zinc-Plated Steel | Full Thread & 90° Milling Pocket Head | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 19005070
Alternatively Known As: Universal wood screw, Full thread wood screw, Zinc plated wood screw, Milling pocket head screw, RW drive screw
Technical Specifications
- Nominal diameter: 5 mm
- Length: 70 mm
- Thread length: 62 mm
- Head type: Countersunk milling pocket head
- Head diameter: 9.6 mm
- Head height: 3.2 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Core diameter: 3.2 mm
- Shape of tip: Tip with hilltop milling cutter
- Angle of the tip: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Colour: Silver
- Min./max. screw-in angle: 0-90 degrees
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Suitable machines: Würth BS 14-A Combi, Würth BS 18-A Power
- Screw requiring approval: Yes
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 70mm x 9.6mm
- Weight: 0.15 kg
Key Features
- Universal full-thread screw for fast, permanent fixing
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess and perfect bit fit for precise positioning and one-handed working
- Compatibility with previous AW drive
- No over-tightening or stripping
- Reinforced, asymmetrical thread flank geometry for higher power transmission in hardwoods
- Higher thread flanks for better anchoring
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation reduces screw-in force
- High strength values and ductility from adjusted heat treatment
- Tip with hilltop milling cutter and 34° tip angle
Professional Installation Requirements
- Professional installation recommended for structural applications to ensure compliance with building codes and standards.
Applications
- Universal fastening for wood-wood connections
- Metal-wood fastening in furniture construction
- Interior construction
- Wood construction in indoor dry or sheltered areas
- Structural woodwork
- Element construction
- Interior fitting
- Roof
- Timber construction
- Timber panel construction
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable and long-lasting fastening reduces need for replacements
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 4 CSMP universal screws are available for immediate purchase, ideal for structural wood and timber construction applications.
