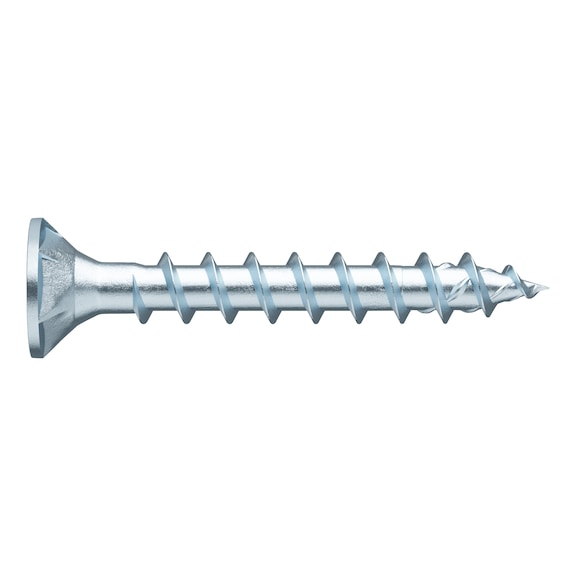

ASSY® 4 CSMP Universal Screw | Zinc-Plated Steel | Full Thread Design | 90° Milling Pocket Head | @Pack of 250 | by Wurth
The ASSY® 4 CSMP Universal Screw is designed for fast, permanent fixing in wood and metal applications. With its zinc-plated steel construction and full thread design, it ensures optimal power transmission and reduced splitting effects. Ideal for structural woodwork and furniture construction, this screw features a tight-fit recess for precise positioning, making it perfect for both professionals and skilled users.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 CSMP Universal Screw | Zinc-Plated Steel | Full Thread Design | 90° Milling Pocket Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 19005045
Alternatively Known As: Universal wood screw, Full thread wood screw, Zinc plated wood screw, Milling pocket head screw, RW drive screw, Structural wood screw
Technical Specifications
- Dimensions (H x L x W): 3.2mm x 45mm x 9.6mm
- Weight: 0.15 kg
Key Features
- Universal full-thread screw for fast, permanent fixing
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess and perfect bit fit for precise positioning and one-handed working
- Compatibility with previous AW drive
- No over-tightening or stripping
- Reinforced, asymmetrical thread flank geometry for higher power transmission in hardwoods
- Higher thread flanks for better anchoring
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation reduces screw-in force
- High strength values and ductility due to adjusted heat treatment
- Tip with hilltop milling cutter and 34° tip angle
Professional Installation Requirements
- Recommended installation by professionals or skilled users using suitable machines such as Würth BS 14-A Combi or Würth BS 18-A Power for optimal performance.
Applications
- Universal fastening for wood-wood connections
- Metal-wood fastening in furniture construction
- Interior construction
- Wood construction in indoor dry or sheltered areas
- Structural woodwork, element construction, interior fitting, roof, timber construction, timber panel construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc-plated surface for corrosion resistance extending product life
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
The Wurth ASSY® 4 CSMP Universal Screw is available for immediate purchase, ideal for structural woodwork, furniture construction, and timber panel applications.
