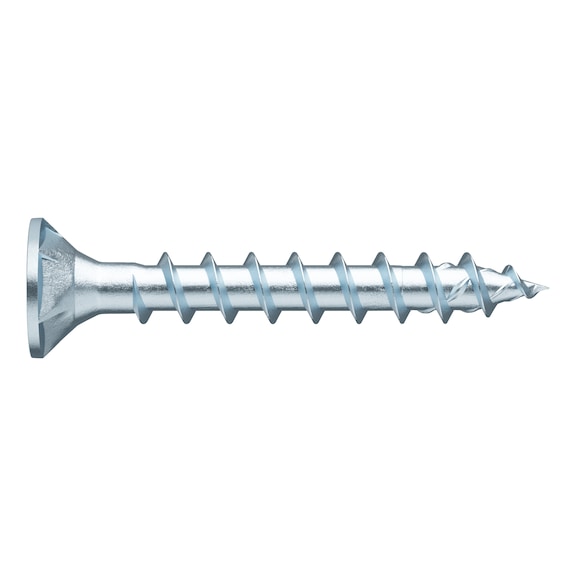

ASSY® 4 CSMP Universal Screw | Zinc-Plated Steel | Full Thread | 90° Milling Pocket Head | @Pack of 250 | by Wurth
ASSY® 4 CSMP universal screws are designed for fast, permanent fixing in wood and metal connections. With a unique RW drive for optimal power transmission and a full thread design, these screws ensure stability and precise positioning. Ideal for structural woodwork and furniture construction, they are RoHS-compliant and feature a durable zinc-plated finish for enhanced corrosion resistance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 CSMP Universal Screw | Zinc-Plated Steel | Full Thread | 90° Milling Pocket Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 19005055
Alternatively Known As: Wood screw, Full thread wood screw, Zinc plated wood screw, Milling pocket screw, RW drive screw, Structural wood screw
Technical Specifications
- Nominal diameter: 5 mm
- Length: 55 mm
- Thread length: 47 mm
- Head type: Countersunk milling pocket head
- Head diameter: 9.6 mm
- Head height: 3.2 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Core diameter: 3.2 mm
- Shape of tip: Tip with hilltop milling cutter
- Angle of the tip: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Colour: Silver
- Min./max. screw-in angle: 0-90 degrees
- Suitable for use in: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Suitable machines: Würth BS 14-A Combi, Würth BS 18-A Power
- Screw requiring approval: Yes
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.2mm x 55mm x 9.6mm
- Weight: 0.2 kg
Key Features
- Universal full-thread screw for fast, permanent fixing of wood-wood or metal-wood connections
- Ideal power transmission thanks to RW drive
- More power due to larger contact area at the bit
- More stability and precise positioning due to tight-fit recess and perfect bit fit
- Fewer bit changes, one bit for many screw diameters
- Compatibility with previous AW drive
- No over-tightening or stripping and high feed
- Higher power transmission in hardwoods due to reinforced, asymmetrical thread flank geometry
- Better anchoring thanks to higher thread flanks
- Smooth thread start ensures optimized recessing and biting
- Reduced splitting effect due to displacement effect of dome-shaped milling elements in the tip
- Friction-reduced thread rotation allows reduction of screw-in force
- High strength values and ductility due to adjusted heat treatment
- Tip with hilltop milling cutter and 34° tip angle
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Structural woodwork
- Element construction
- Interior fitting
- Roof
- Timber construction
- Timber panel construction
- Furniture construction
- Interior construction
- Wood construction in indoor dry or sheltered areas
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable and corrosion-resistant zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY® 4 CSMP universal screws are available for immediate purchase, ideal for structural and interior wood construction applications.
