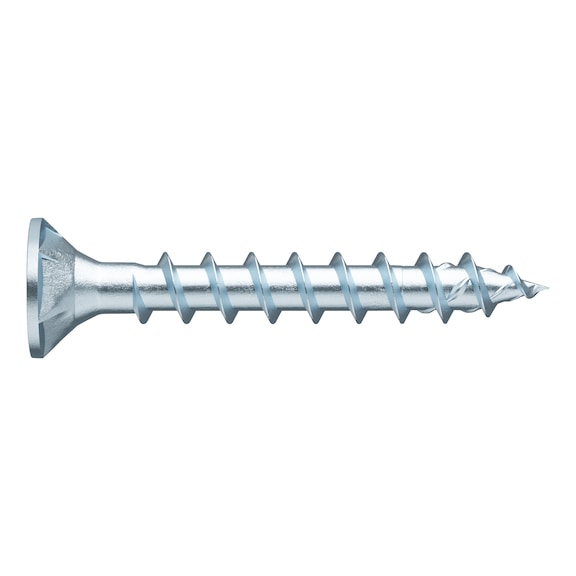

ASSY® 4 CSMP Universal Screw | Zinc-Plated Steel | Full Thread & 90° Milling Pocket Head | @Pack of 500 | by Wurth
The ASSY® 4 CSMP universal screw is designed for fast, permanent fixing in wood and metal applications. With a zinc-plated steel construction and a unique 90° milling pocket head, it ensures optimal power transmission and precise positioning. Ideal for furniture construction and interior fitting, this screw reduces splitting effects and enhances anchoring, making it perfect for various woodworking projects.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 CSMP Universal Screw | Zinc-Plated Steel | Full Thread & 90° Milling Pocket Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 19005040
Alternatively Known As: Universal wood screw, Full thread wood screw, Zinc plated wood screw, Milling pocket head screw, RW drive screw
Technical Specifications
- Dimensions (H x L x W): 3.2mm x 40mm x 9.6mm
- Weight: 0.15 kg
Key Features
- Universal full-thread screw for fast, permanent fixing
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess and perfect bit fit for precise positioning and one-handed working
- One bit for many screw diameters reduces bit changes
- Compatibility with previous AW drive
- No over-tightening or stripping with high feed
- Reinforced, asymmetrical thread flank geometry for higher power transmission in hardwoods
- Higher thread flanks for better anchoring
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force
- High strength values and ductility from adjusted heat treatment
- Tip with hilltop milling cutter and 34° tip angle
Professional Installation Requirements
- Recommended installation with suitable machines such as Würth BS 14-A Combi or Würth BS 18-A Power for optimal performance and safety.
Applications
- Wood-wood connections
- Metal-wood fastening
- Furniture construction
- Interior construction
- Wood construction in indoor dry or sheltered areas
- Structural woodwork
- Element construction
- Interior fitting
- Roof
- Timber construction
- Timber panel construction
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc-plated surface extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product meets ETA-11/0190 approval standards.
Available Now
Available for immediate purchase, ideal for furniture, interior, and timber construction applications.
