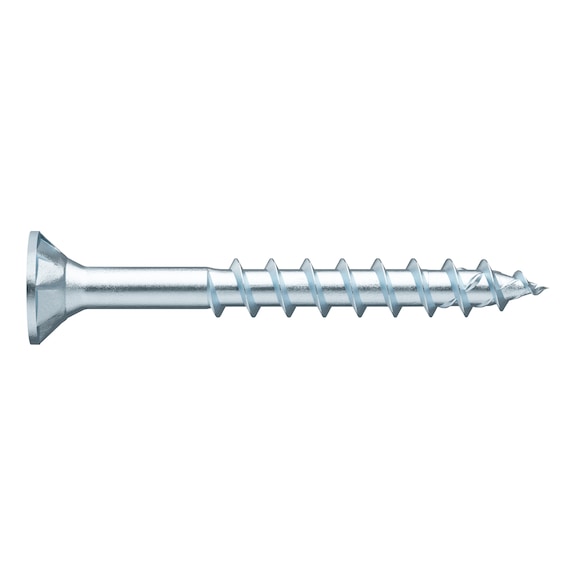

ASSY® 4 CSMP Universal Screw | Zinc Plated | Partial Thread | High Strength | @Pack of 1000 | by Wurth
ASSY® 4 CSMP universal screws are designed for fast, gap-free fastening in wood-wood connections, featuring a zinc-plated finish for durability. Ideal for furniture construction and interior fitting, these screws ensure optimal power transmission and reduced risk of injury from protruding metal chips. With a unique partial thread design, they minimize screw breakage and provide high strength values, making them perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 CSMP Universal Screw | Zinc Plated | Partial Thread | High Strength | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 19013035
Alternatively Known As: Wood screws, Partial thread wood screws, Countersunk wood screws, Milling pocket screws, Furniture screws
Technical Specifications
- Dimensions (H x L x W): 1.9mm x 35mm x 5.9mm
- Weight: 0.05 kg
Key Features
- Universal partial-thread screw for fast, gap-free fastening of wood-wood connections
- Ideal power transmission thanks to RW recess
- Larger contact area at the bit for more power
- One-handed working and precise positioning due to tight-fit recess
- Compatibility with previous AW drive
- Significant reduction in force required when screwing
- Low gap effect due to displacement milling effect of the milling shank
- Minimized risk of screw breakage due to high breaking torque
- Reduced risk of injury from protruding metal chips
- High protection of application tools
- No over-tightening or stripping and high feed
- Higher power transmission in hardwoods due to reinforced asymmetrical thread flank geometry
- Better anchorage thanks to higher thread flanks
- Smooth thread start ensures optimized recessing and biting
- Friction-reduced thread rotation reduces screw-in force
- High strength values and ductility with adjusted heat treatment
Professional Installation Requirements
- Recommended installation by professionals or skilled users using suitable machines such as Würth BS 14-A Combi or Würth BS 12-A Power for optimal performance.
Applications
- Furniture construction
- Interior fitting
- Wood construction in indoor dry or sheltered areas
- Universal wood-wood connections
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances
- Durable zinc plated surface extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product meets ETA-11/0190 approval standards.
Available Now
Available for immediate purchase, ideal for furniture construction, interior fitting, and wood construction applications.
