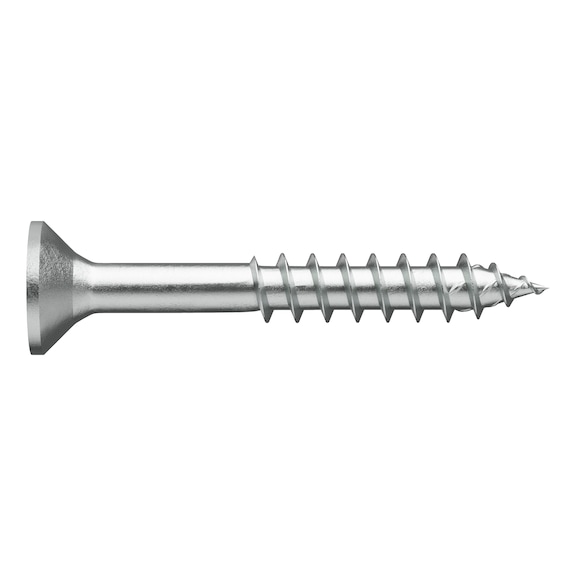

ASSY® 4 HCR 1.4539 CS Stainless Steel Screw | Highly Corrosion Resistant | Countersunk Head | @Pack of 100 | by Wurth
ASSY® 4 HCR 1.4539 CS stainless steel screws are designed for outdoor and marine applications, offering exceptional corrosion resistance and a countersunk head for seamless wood fastening. Ideal for timber construction and environments exposed to moisture, these screws ensure reliable performance with enhanced power transmission and stability, making them perfect for professionals and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 HCR 1.4539 CS Stainless Steel Screw | Highly Corrosion Resistant | Countersunk Head | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 187960100
Alternatively Known As: Stainless steel wood screw, Corrosion resistant countersunk screw, HCR stainless steel screw, 1.4539 stainless steel screw, Partial thread wood screw
Technical Specifications
- Nominal diameter: 6 mm
- Length: 100 mm
- Head type: Countersunk head
- Head diameter: 12 mm
- Head height: 4.4 mm
- Internal drive: RW30
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Thread length: 60 mm
- Core diameter: 3.9 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Stainless steel 1.4539 (X1NiCrMoCu25-20-5)
- Surface finish: Plain
- Min/max screw-in angle: 0-90 degrees
- Product weight per item: 12.920 g
- Suitable materials: Wood, derived timber product, softwood, board plywood (BSP), hardwood, LVL
- Suitable machines: Würth BS 14-A Combi
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.4mm x 100mm x 6mm
- Weight: 0.013 kg
Key Features
- Made of high-quality austenitic HCR stainless steel 1.4539 with countersunk head for wood-wood fastening in areas severely exposed to corrosion (corrosion resistance class IV)
- Ideal power transmission thanks to RW drive
- More power due to larger contact area at the bit
- More stability, one-handed working, precise positioning due to the tight-fit recess and perfect fit of the bit
- Fewer bit changes, one bit for many screw diameters
- Compatibility with previous AW drive
- Form-fitting connection to metal fittings or in wooden products with high bulk density
- Perfect fit of 90° head in fitting parts with metal countersinks
- Pulls together without head milling due to lack of milling elements below the head
- Higher breaking torque
- Higher power transmission in hardwoods due to reinforced, asymmetrical thread flank geometry of the single thread
- Better anchoring thanks to higher thread flanks
- Smooth thread start ensures optimised recessing and biting of the screw
- Reduced splitting effect due to displacement effect of the dome-shaped milling elements in the tip
- Friction-reduced thread rotation allows reduction of the screw-in force to be applied
- Suitable for high chloride or SO2-contaminated areas with simultaneous exposure to splash water or fog
- Made of high corrosion-resistant, austenitic, non-magnetic and non-rusting stainless steel, class HCR
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct fastening and compliance with safety standards.
Applications
- Outdoors
- Façades
- Wet areas
- Timber construction
- Ocean climate
- Play equipment
- Board walk
- Terrace
- Fence
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Made from corrosion-resistant stainless steel which extends product life and reduces replacement frequency
- Suitable for outdoor and marine environments reducing environmental impact of frequent repairs
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Available for immediate purchase, ideal for outdoor timber construction, marine environments, and corrosion-prone applications.
