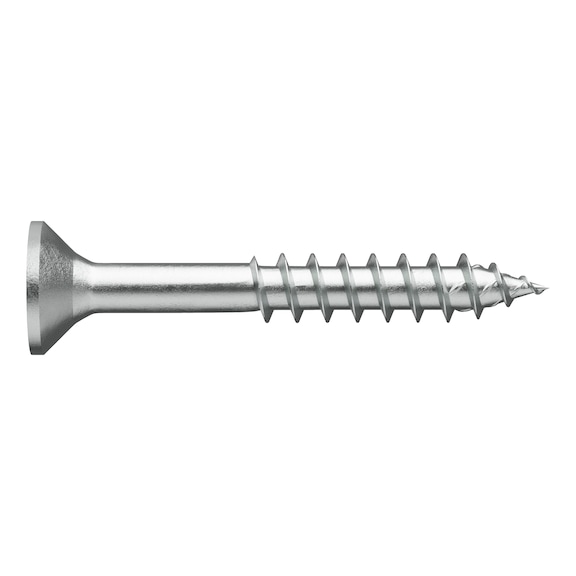

ASSY® 4 HCR 1.4539 CS Stainless Steel Screw | Highly Corrosion Resistant | Countersunk Head | Partial Thread | @Pack of 200 | by Wurth
The ASSY® 4 HCR 1.4539 CS stainless steel screw is designed for outdoor use, featuring high corrosion resistance and a countersunk head for a flush finish. Ideal for timber construction and marine environments, this screw offers a smooth thread start and reinforced thread geometry for optimal power transmission and reduced splitting. Perfect for applications in wet areas and high chloride conditions.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 HCR 1.4539 CS Stainless Steel Screw | Highly Corrosion Resistant | Countersunk Head | Partial Thread | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 18794040
Alternatively Known As: Stainless steel wood screw, corrosion resistant screw, HCR screw, countersunk head screw, partial thread screw
Technical Specifications
- Dimensions (H x L x W): 2.5mm x 40mm x 8mm
- Weight: 0.0022 kg
Key Features
- Made of high-quality austenitic HCR stainless steel 1.4539 with corrosion resistance class IV
- Partial thread with wood screw thread design and single start thread form
- Countersunk head with 90° fit for metal countersinks
- RW20 internal drive for ideal power transmission and fewer bit changes
- Higher breaking torque and power transmission in hardwoods due to reinforced asymmetrical thread flank geometry
- Smooth thread start reduces screw-in force and splitting effect
- Tip with hilltop milling cutter and 28° tip angle for optimized recessing and biting
- Non-magnetic, non-rusting stainless steel suitable for high chloride or SO2-contaminated areas
- RoHS-compliant and ETA-11/0190 approved
Professional Installation Requirements
- Recommended installation using suitable machines such as Würth BS 14-A Combi for optimal performance and safety.
Applications
- Outdoor use in facades, wet areas, timber construction, ocean climate
- Play equipment, boardwalk, terrace, fence
- Suitable for wood, derived timber products, softwood, plywood (BSP), hardwood, LVL
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for construction fasteners
Environmental Benefits
- Corrosion resistance extends product lifespan reducing waste
- RoHS compliance ensures reduced hazardous substances
- Durable stainless steel reduces need for frequent replacements
Warranty Information
Warranty details available upon request from Wurth; product meets ETA-11/0190 approval standards.
Available Now
Available for immediate purchase, ideal for outdoor timber construction, facades, and marine environments.
