ASSY® 4 HCR 1.4539 CS Stainless Steel Screw | Highly Corrosion Resistant | Partial Thread Countersunk Head | @Pack of 250 | by Wurth

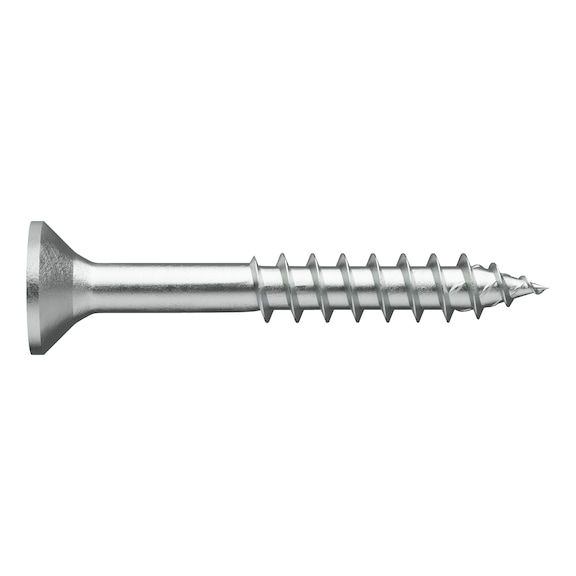

ASSY® 4 HCR 1.4539 CS stainless steel screws are designed for outdoor use, featuring a highly corrosion-resistant 1.4539 material and a partial thread with a countersunk head. Ideal for timber construction and marine environments, these screws ensure optimal performance with their RW20 internal drive and smooth thread start, making them perfect for wood fastening applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 HCR 1.4539 CS Stainless Steel Screw | Highly Corrosion Resistant | Partial Thread Countersunk Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 18794060
Alternatively Known As: Stainless steel wood screw, corrosion resistant screw, countersunk head screw, HCR screw, 1.4539 stainless screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 60 mm
- Head type: Countersunk head
- Head diameter: 8 mm
- Head height: 2.5 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Thread length: 39 mm
- Core diameter: 2.5 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Stainless steel 1.4539 (X1NiCrMoCu25-20-5)
- Surface finish: Plain
- Min/max screw-in angle: 0-90 degrees
- Product weight per item: 3.376 g
- Suitable materials: Wood, derived timber product, softwood, plywood, hardwood, LVL
- Suitable machines: Würth BS 14-A Combi
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 60mm x 8mm
- Weight: 0.0034 kg
Key Features
- Made of high-quality austenitic HCR stainless steel 1.4539 with corrosion resistance class IV
- Partial thread wood screw with countersunk head for wood-wood fastening
- RW20 internal drive for ideal power transmission and fewer bit changes
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start reduces screw-in force and splitting effect
- Non-magnetic, non-rusting stainless steel suitable for high chloride or SO2-contaminated areas
- Tip with hilltop milling cutter and 28° tip angle for optimized recessing and biting
- Pulls together without head milling due to lack of milling elements below the head
- Perfect fit of 90° head in metal countersinks
Professional Installation Requirements
- Recommended installation with Würth BS 14-A Combi machine or equivalent for optimal performance.
Applications
- Outdoor use in facades, wet areas, timber construction
- Ocean climate environments
- Play equipment, boardwalks, terraces, fences
- Suitable for wood, derived timber products, softwood, plywood, hardwood, LVL
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads) for construction fasteners
Environmental Benefits
- Corrosion resistance extends product life reducing replacement frequency and waste
- RoHS-compliant ensuring reduced hazardous substances
- Suitable for outdoor and marine environments minimizing environmental impact
Warranty Information
Warranty details available upon request from Wurth; product approved under ETA-11/0190.
Available Now
Available for immediate purchase, ideal for outdoor timber construction, marine, and high corrosion environments.
