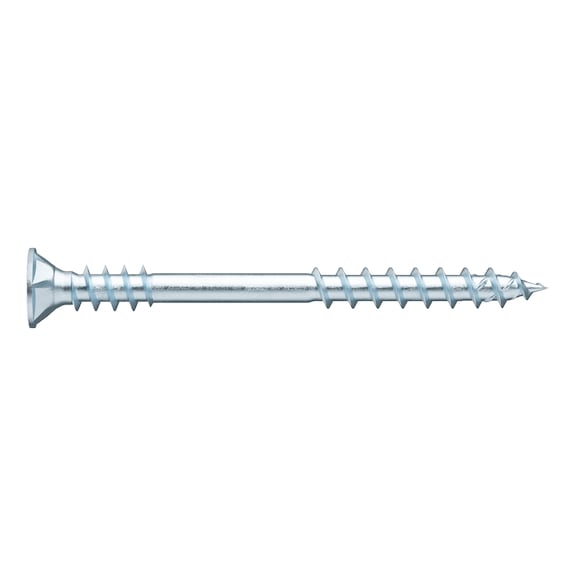

ASSY 4 P CSMP Universal Screw | Zinc Plated | Countersunk Milling Pocket Head | RW Drive | @Pack of 500 | by Wurth
The ASSY 4 P CSMP universal screw is designed for optimal fastening in furniture and timber construction. Featuring a zinc-plated finish and a countersunk milling pocket head, this screw ensures a high tightening effect for gap-free wood-wood connections. Ideal for professional tradespeople, it offers enhanced power transmission and compatibility with previous AW drives, making it perfect for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY 4 P CSMP Universal Screw | Zinc Plated | Countersunk Milling Pocket Head | RW Drive | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 19040440
Alternatively Known As: Wood screw, Partial thread screw, Zinc plated wood screw, Countersunk milling pocket head screw, RW drive screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 40 mm
- Thread length: 23 mm
- Head type: Countersunk milling pocket head
- Head diameter: 8 mm
- Head height: 2.5 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread with underhead thread
- Shaft length: 6.0 mm
- Thread form: Coarse thread
- Core diameter: 2.5 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Min/max screw-in angle: 0-90 degrees
- Suitable materials: Wood, derived timber products, softwood, plywood, hardwood, LVL, 3 layer board
- Suitable machines: Würth ABS 12-E, BS 12-A Power, BS 14-A Combi
- Screw requiring approval: Yes, ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 40mm x 8mm
- Weight: 0.02 kg
Key Features
- Universal partial-thread screw with underhead thread
- High tightening effect for fast, gap-free fastening of wood-wood connections
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess and perfect bit fit for precise positioning and one-handed working
- Compatibility with previous AW drive
- No over-tightening or stripping with high feed
- Reinforced, asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimized recessing and biting
- Dome-shaped milling elements in the tip reduce gap effect
- Friction-reduced thread rotation lowers screw-in force
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct fastening and compliance with structural requirements.
Applications
- Furniture construction
- Interior fitting
- Timber construction
- Press glueing
- Board doubling
- Cabinet making
- Casing
- Dowel fixing
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY 4 P CSMP universal partial thread screw is available for immediate purchase, ideal for furniture and timber construction applications.
