ASSY® 4 PH Fittings Screw | Full Thread Pan Head | Zinc Plated Steel | @Pack of 1000 | by Wurth
ASSY® 4 PH fittings screws are designed for universal fixing in wood and metal applications. Featuring a full thread pan head and durable zinc plating, these screws ensure optimal power transmission and precise positioning. Ideal for furniture assembly and metal fittings, they are RoHS-compliant and come with a manufacturer warranty for quality assurance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 PH Fittings Screw | Full Thread Pan Head | Zinc Plated Steel | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 153730015
Alternatively Known As: Pan head wood screws, Zinc plated steel screws, Full thread screws, RW drive screws, Universal fixing screws

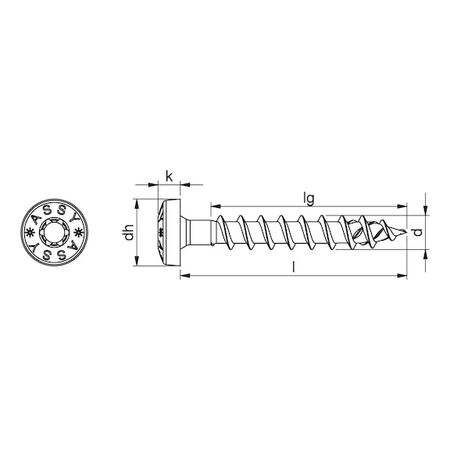

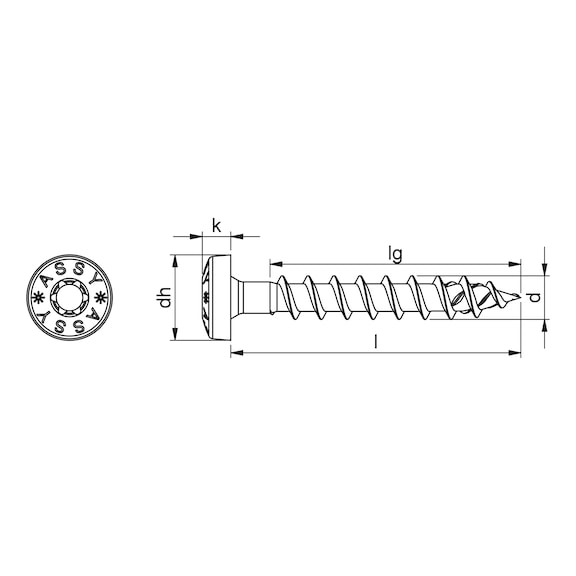

Technical Specifications
- Nominal diameter: 3 mm
- Length: 15 mm
- Head type: Pan head
- Head diameter: 5.8 mm
- Head height: 2.2 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 13 mm
- Core diameter: 2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 0.742 g
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Area of application: Universal, Furniture, Metal plate, Wood, Fitting
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.2mm x 15mm x 5.8mm
- Weight: 0.75 kg
Key Features
- Full-thread design with pan head for universal fixing
- RW drive for ideal power transmission and larger contact area
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Flat fastening for metal sheets for secondary purposes
- Reinforced asymmetrical coarse thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimized recessing and biting
- Dome-shaped milling elements in tip reduce splitting effect
- Friction-reduced thread rotation lowers screw-in force
Professional Installation Requirements
- Professional installation recommended for optimal fixing and safety, especially in structural applications.
Applications
- Universal fixing of metal fittings or plastic supports in wood
- Indoor dry or sheltered areas
- Furniture assembly
- Metal plate and wood fittings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Comes with manufacturer warranty and ETA-11/0190 approval ensuring quality and compliance.
Available Now
Available for immediate purchase, ideal for universal fixing applications in wood and metal fittings.
