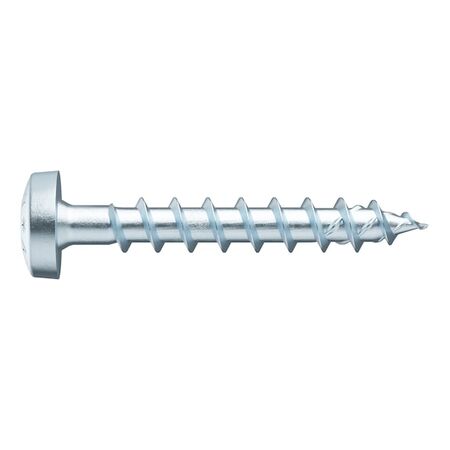

ASSY® 4 PH Fittings Screw | Full Thread Pan Head | Zinc Plated | @Pack of 1000 | by Wurth
ASSY® 4 PH fittings screws are designed for universal fixing in wood and metal applications. Featuring a full thread pan head and RW drive for optimal power transmission, these screws ensure precise positioning and reduced splitting effects. Ideal for furniture assembly and metal plate fittings, they are perfect for indoor dry or sheltered areas, providing durability and compliance with safety standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

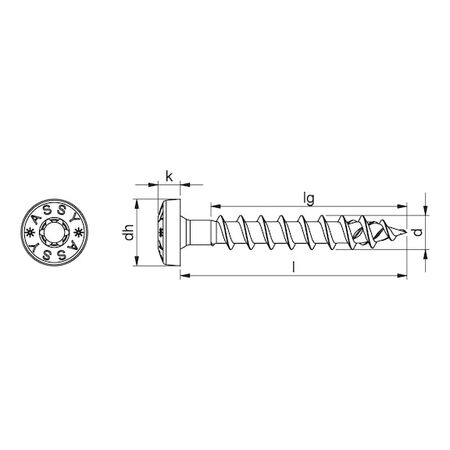

Technical Specifications
- Nominal diameter: 3 mm
- Length: 17 mm
- Head type: Pan head
- Head diameter: 5.8 mm
- Head height: 2.2 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 15 mm
- Core diameter: 2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 0.778 g
- Suitable materials: Wood, derived timber products, softwood, plywood, hardwood, LVL
- Dimensions (H x L x W): 2.2mm x 17mm x 5.8mm
- Weight: 0.78 kg
Key Features
- Full-thread design with pan head for universal fixing

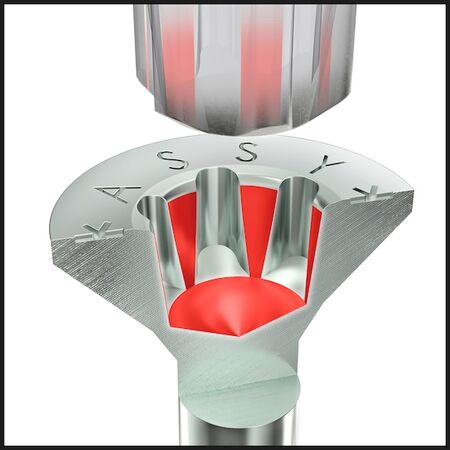

- RW drive for ideal power transmission and larger contact area
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Flat fastening for metal sheets for secondary purposes
- Reinforced asymmetrical coarse thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimized recessing and biting
- Dome-shaped milling elements in tip reduce splitting effect
- Friction-reduced thread rotation lowers screw-in force
Professional Installation Requirements
- Professional installation recommended for optimal fixing performance and safety, especially in structural applications.
Applications
- Universal fixing of metal fittings or plastic supports in wood
- Indoor dry or sheltered areas
- Furniture assembly
- Metal plate and wood fittings
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Complies with ETA-11/0190 approval and RoHS compliant, ensuring quality and safety standards.
Available Now
Wurth ASSY® 4 PH full thread pan head screws are available for immediate purchase, ideal for universal fixing in wood and metal fittings in indoor and sheltered environments.
