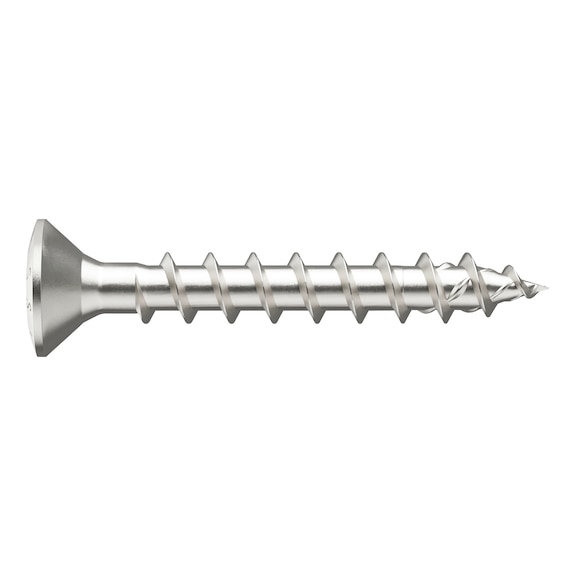

ASSY® 4 RCS Fittings Screw | Nickel-Plated | Full Thread & Raised Countersunk Head | @Pack of 1000 | by Wurth
ASSY® 4 RCS fittings screws are designed for furniture construction and interior applications, featuring a nickel-plated finish for corrosion resistance and a raised countersunk head for a clean look. With a universal full-thread design and optimized RW drive, these screws ensure powerful transmission and stability, making them ideal for both professionals and DIY enthusiasts.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 RCS Fittings Screw | Nickel-Plated | Full Thread & Raised Countersunk Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 154633517
Alternatively Known As: Nickel-plated wood screws, Raised countersunk head screws, Full thread wood screws, RW drive screws, Furniture screws
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 17 mm
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 13 mm
- Core diameter: 2.1 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Head type: Raised countersunk head
- Head diameter: 7 mm
- Head height: 2.3 mm
- Internal drive: RW20
- Material: Hardened steel
- Surface finish: Nickel plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 45 degrees
- Product weight per item: 0.861 g
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Area of application: Universal, furniture, cabinet, fitting
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.3mm x 17mm x 7mm
- Weight: 0.86 kg
Key Features
- Universal full-thread screw with raised countersunk head
- Nickel-plated for corrosion resistance
- Ideal power transmission with RW drive
- Larger contact area at the bit for more power
- More stability and precise positioning due to tight-fit recess
- One bit fits many screw diameters reducing bit changes
- Compatibility with previous AW drive
- Form-fit connection of 90° countersunk head to metal fittings or wooden products
- Visually appealing lens-shaped, rounded head
- Pulling together without head milling due to lack of milling elements
- No over-tightening or stripping with high feed
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Better anchoring with higher thread flanks
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct screw selection and fastening technique for optimal performance and safety.
Applications
- Furniture construction
- Shopfitting
- Interior construction
- Fastening fittings to wood or wooden materials
- Indoor dry or sheltered areas
Standards & Compliance
- Complies with AS/NZS 4785 – Timber screws for general use in timber
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable nickel plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to Wurth's warranty policy for details.
Available Now
Available for immediate purchase, ideal for furniture, cabinet making, and interior wood construction applications.
