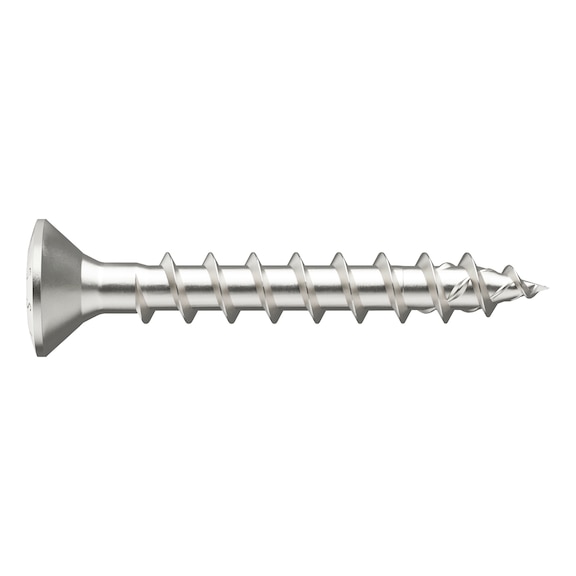

ASSY® 4 RCS Fittings Screw | Nickel-Plated | Full Thread | Raised Countersunk Head | @Pack of 1000 | by Wurth
ASSY® 4 RCS fittings screws are designed for universal applications, featuring a nickel-plated finish for corrosion resistance and a raised countersunk head for a clean look. Ideal for furniture construction and interior fittings, these screws ensure optimal power transmission with their RW drive, making them perfect for both softwood and hardwood materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 RCS Fittings Screw | Nickel-Plated | Full Thread | Raised Countersunk Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 154633520
Alternatively Known As: Wood screws, Raised countersunk head screws, Nickel-plated wood screws, Full thread wood screws, Furniture screws
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 20 mm
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 16 mm
- Core diameter: 2.1 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Head type: Raised countersunk head
- Head diameter: 7 mm
- Head height: 2.3 mm
- Internal drive: RW20
- Material: Hardened steel
- Surface: Nickel plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 0.945 g
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Area of application: Universal, furniture, cabinet, fitting
- Dimensions (H x L x W): 2.3mm x 20mm x 7mm
- Weight: 0.95 kg
Key Features
- Universal full-thread screw with raised countersunk head
- Nickel-plated for corrosion resistance
- Ideal power transmission due to RW drive
- Larger contact area at the bit for more power
- More stability and precise positioning with tight-fit recess
- One bit fits many screw diameters reducing bit changes
- Form-fit connection of 90° countersunk head to metal fittings or wooden products
- Visually appealing lens-shaped, rounded head
- Pulls together without head milling due to lack of milling elements
- No over-tightening or stripping with high feed
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Better anchoring with higher thread flanks
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in tip
- Friction-reduced thread rotation lowers screw-in force
Professional Installation Requirements
- Professional installation recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Furniture construction
- Shopfitting
- Interior construction
- Fastening fittings to wood or wooden materials
- Indoor dry or sheltered areas
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable nickel plating extends product life reducing waste
Warranty Information
Screw requiring approval with ETA-11/0190 certification; RoHS-compliant.
Available Now
Available for immediate purchase, ideal for furniture, cabinet making, and interior construction applications.
