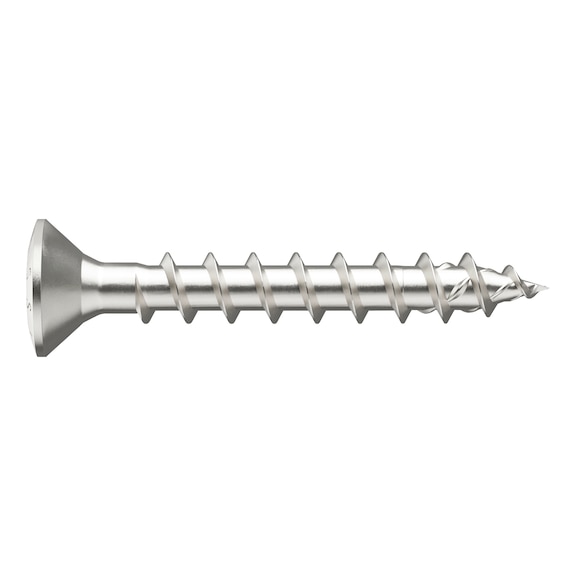

ASSY® 4 RCS Fittings Screw | Nickel-Plated | Full Thread | Raised Countersunk Head | @Pack of 1000 | by Wurth
ASSY® 4 RCS fittings screws are designed for reliable fastening in furniture and interior construction. With a nickel-plated finish for corrosion resistance and a raised countersunk head for a clean look, these screws ensure optimal power transmission and stability. Ideal for professionals, they provide a smooth thread start and reduced splitting effect, making them perfect for various wood materials.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 RCS Fittings Screw | Nickel-Plated | Full Thread | Raised Countersunk Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 154633525
Alternatively Known As: Wood screws, Raised countersunk head screws, Nickel-plated wood screws, Full thread wood screws, Furniture screws
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 25 mm
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 21 mm
- Core diameter: 2.1 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 28 degrees
- Head type: Raised countersunk head
- Head diameter: 7 mm
- Head height: 2.3 mm
- Internal drive: RW20
- Material: Hardened steel
- Surface: Nickel plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Product weight per item: 1.146 g
- Suitable materials: Wood, Derived timber product, Softwood, Board plywood (BSP), Hardwood, LVL
- Area of application: Universal, Furniture, Cabinet, Fitting
- Screw requiring approval: Yes
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.3mm x 25mm x 7mm
- Weight: 1.15 kg
Key Features
- Universal full-thread screw with raised countersunk head
- Nickel-plated for corrosion resistance
- Ideal power transmission due to RW drive
- Larger contact area at the bit for more power
- More stability and precise positioning with tight-fit recess
- One bit fits many screw diameters reducing bit changes
- Form-fit connection of 90° countersunk head to metal fittings or wooden products
- Visually appealing lens-shaped, rounded head
- Pulls together without head milling due to lack of milling elements
- No over-tightening or stripping with high feed
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Better anchoring with higher thread flanks
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force
Professional Installation Requirements
- Installation by professionals or skilled personnel recommended to ensure proper fastening and compliance with application standards.
Applications
- Furniture construction
- Shopfitting
- Interior construction
- Fastening fittings to wood or wooden materials in indoor dry or sheltered areas
Standards & Compliance
- AS/NZS 4785 – Wood screws
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable nickel plating extends product life reducing waste
Warranty Information
Screw requiring approval with ETA-11/0190 certification; RoHS-compliant.
Available Now
Wurth ASSY® 4 RCS nickel-plated full thread raised countersunk head screws are available for immediate purchase, ideal for furniture and interior construction fastening applications.
