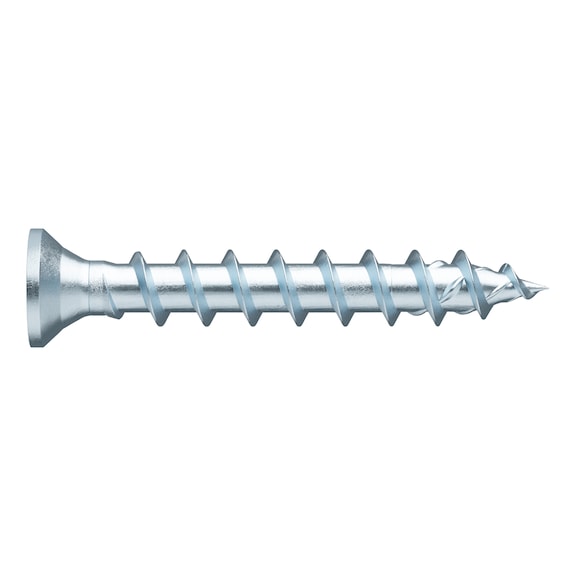

ASSY® 4 SCS Piano Hinge Screw | Zinc Plated | Full Thread | Small Countersunk Head | @Pack of 1000 | by Wurth
ASSY® 4 SCS piano hinge screws are designed for reliable fastening in wood, featuring a small countersunk head and full thread for optimal grip. Ideal for furniture assembly and cabinet making, these screws ensure strong connections with reduced splitting effects, thanks to their innovative tip design and zinc-plated hardened steel construction for durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 SCS Piano Hinge Screw | Zinc Plated | Full Thread | Small Countersunk Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 168833016
Alternatively Known As: Piano hinge screws, Full thread wood screws, Zinc plated countersunk screws, Small head wood screws, RW drive screws
Technical Specifications
- Nominal diameter: 3 mm
- Length: 16 mm
- Head type: Small countersunk head
- Head diameter: 4.9 mm
- Head height: 1.3 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread
- Thread form: Coarse thread
- Thread length: 13 mm
- Core diameter: 2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface finish: Zinc plated
- Colour: Silver
- Screw-in angle range: 0-90 degrees
- Product weight per item: 0.522 g
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL
- Area of application: Furniture, cabinet, fitting, piano hinge
- Suitable machines: Würth BS 12-A Power
- Approval: ETA-11/0190
- Screw requiring approval: Yes
- RoHS-compliant: Yes
- Dimensions (H x L x W): 1.3mm x 16mm x 4.9mm
- Weight: 0.52 kg
Key Features
- Full-thread wood screw with small countersunk head for fixing piano hinges in wood
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess and perfect bit fit
- Compatibility with previous AW drive and fewer bit changes needed
- Strong fastening of thin sheet metals such as rod hinges or piano hinges
- Low head height and small head diameter to prevent over-tightening or stripping
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimized recessing and biting
- Reduced splitting effect due to dome-shaped milling elements in the tip
- Friction-reduced thread rotation lowers screw-in force
- High strength and ductility guaranteed by adjusted heat treatment
- Zinc plated hardened steel construction for durability and corrosion resistance
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially when used in structural or load-bearing applications.
Applications
- Furniture assembly
- Cabinet making
- Fitting installation
- Piano hinge fixing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Wurth provides warranty coverage as per standard terms for hardware products; please refer to Wurth's official warranty policy for details.
Available Now
Available for immediate purchase, ideal for furniture, cabinetry, and piano hinge fixing applications.
