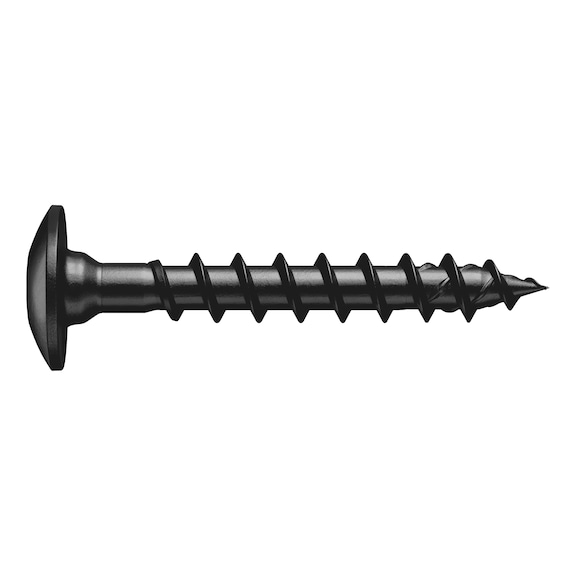

ASSY® 4 TRH Gate Hinge Screw | Steel Zinc-Nickel Coating | Full Thread Truss Head | Corrosion Resistant | by WURTH
The ASSY® 4 TRH gate hinge screw is designed for high-performance fastening in construction and woodworking applications. Featuring a steel body with a zinc-nickel black coating, this screw offers exceptional corrosion resistance, passing a 500-hour salt spray test. Its large round truss head and RW recess ensure optimal power transmission, making it ideal for securing gate fittings and metal units to wood.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 TRH Gate Hinge Screw | Steel Zinc-Nickel Coating | Full Thread Truss Head | Corrosion Resistant | by WURTH
Brand: WURTH
SKU: 16766030
Alternatively Known As: Gate hinge screw, Zinc-nickel coated screw, Full thread truss head screw, Corrosion resistant wood screw
Technical Specifications
- Material: Steel with zinc-nickel black coating
- Thread: Full thread
- Head type: Large round truss head with underside shank reinforcement
- Corrosion resistance: 500 hours salt spray test
- Recess type: RW recess for ideal power transmission
- Approval: ETA-11/0190 European Technical Approval
- Dimensions (H x L x W): 40mm x 40mm x 6mm
- Weight: 0.1 kg
Key Features
- Special black full-thread screw with high corrosion resistance (500 h salt spray test)
- Large round head with underside shank reinforcement
- Ideal power transmission thanks to RW recess
- ETA-11/0190 approved for European Technical Approval compliance
Professional Installation Requirements
- Installation should be performed by professionals familiar with timber and metal fastening to ensure compliance with structural requirements and optimal performance.
Applications
- Fastening gate fittings
- Securing metal units made of flat steel to wood
- Wood and wood material assemblies
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- High corrosion resistance extends product life, reducing replacement frequency and waste
Warranty Information
WURTH provides a standard warranty against manufacturing defects; please refer to WURTH's official warranty policy for details.
Available Now
The WURTH ASSY® 4 TRH gate hinge screw is available for immediate purchase, ideal for construction and woodworking applications requiring durable and corrosion-resistant fastening.
