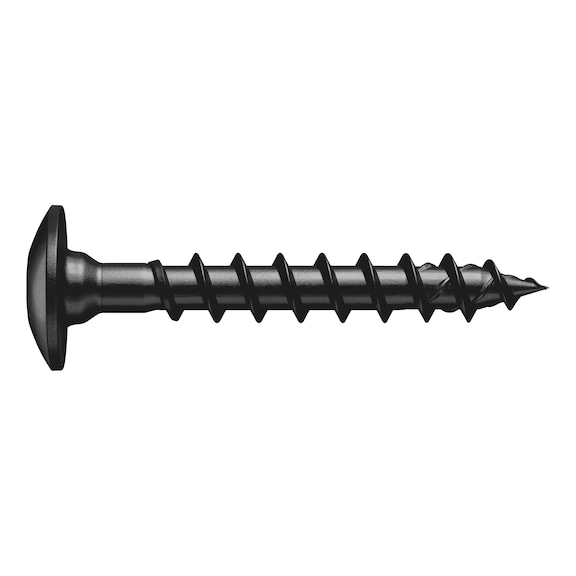

ASSY® 4 TRH Gate Hinge Screw | Steel Zinc-Nickel Coating | Full Thread Truss Head | Corrosion Resistant | by WURTH
The ASSY® 4 TRH gate hinge screw is designed for high-performance fastening, featuring a steel body with a zinc-nickel black coating for superior corrosion resistance. Ideal for securing gate fittings and wood assemblies, this screw ensures optimal power transmission with its RW recess design. With a 500-hour salt spray test rating, it’s perfect for both wood and metal applications in construction and gate assembly.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 TRH Gate Hinge Screw | Steel Zinc-Nickel Coating | Full Thread Truss Head | Corrosion Resistant | by WURTH
Brand: WURTH
SKU: 16766040
Alternatively Known As: Gate hinge screw, black zinc-nickel screw, full thread truss head screw, corrosion resistant wood screw
Technical Specifications
- Material: Steel with zinc-nickel black coating
- Thread: Full thread
- Head type: Truss head
- Corrosion resistance: 500 hours salt spray test
- Recess type: RW recess for ideal power transmission
- Compliance: ETA-11/0190 European Technical Approval
- Dimensions (H x L x W): 40mm x 40mm x 6mm
- Weight: 0.1 kg
Key Features
- Special black full-thread screw with high corrosion resistance (500 h salt spray test)
- Large round head with underside shank reinforcement
- Ideal power transmission thanks to RW recess
- ETA-11/0190 approved for European Technical Approval compliance
Professional Installation Requirements
- Use Würth software or design aids for planning and dimensioning. Professional installation recommended for structural applications.
Applications
- Fastening gate fittings
- Securing metal units made of flat steel to wood
- Wood and wood material assemblies
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- High corrosion resistance extends product lifespan, reducing replacement frequency and waste
Warranty Information
WURTH provides warranty coverage against manufacturing defects as per company policy.
Available Now
The WURTH ASSY® 4 TRH gate hinge screw is available for immediate purchase, ideal for wood and metal fastening in construction and gate assembly.
