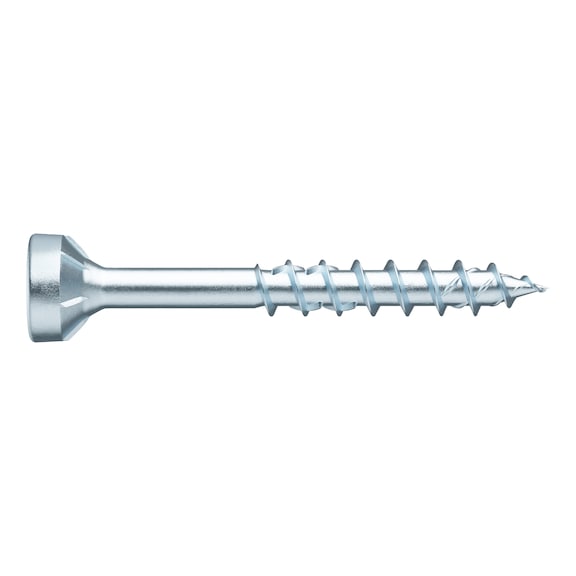

ASSY® 4 WW CSMR 60 Timber Screw | Zinc Plated | Countersunk Milling Head | 200 PCS | by Wurth
The ASSY® 4 WW CSMR 60 timber screw is designed for robust timber construction, featuring a zinc-plated finish and a countersunk milling head for easy installation. Ideal for wood fastening in both dry and wet areas, this screw ensures high breaking torque and reduced splitting, making it perfect for professionals in timber construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® 4 WW CSMR 60 Timber Screw | Zinc Plated | Countersunk Milling Head | 200 PCS | by Wurth
Brand: Wurth
SKU: 19065370
Alternatively Known As: Timber screw, Wood screw, Countersunk wood screw, Partial thread screw, Zinc plated timber screw, Milling head screw

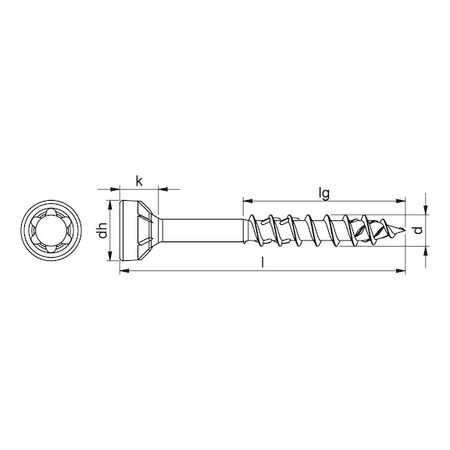

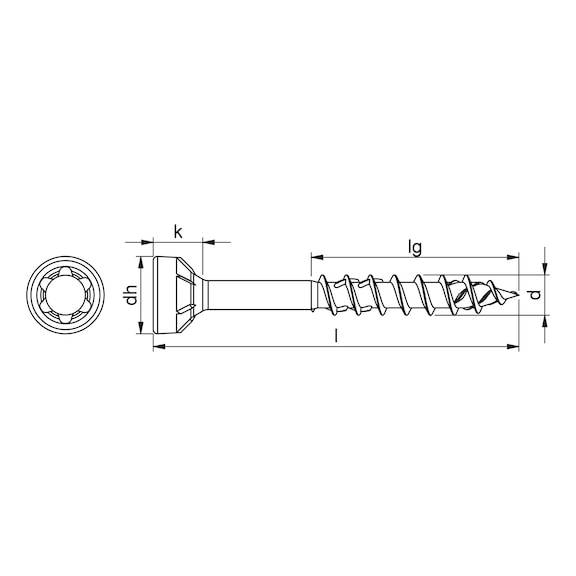

Technical Specifications
- Nominal diameter: 5 mm
- Length: 70 mm
- Thread length: 42 mm
- Head type: Countersunk milling head with milling edges
- Head diameter: 9.5 mm
- Head height: 4.7 mm
- Internal drive: RW40
- Thread type: Wood screw thread, coarse thread, partial thread
- End milling cutter: Yes
- Core diameter: 3.2 mm
- Tip shape: Tip with hilltop milling cutter
- Tip angle: 34 degrees
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Wood, derived timber products, softwood, board plywood (BSP), hardwood, LVL, wood with high branch content
- Area of application: Wood, element construction, timber construction, formwork
- Suitable machines: Würth BS 14-A Combi, Würth BS 18-A Power
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.7mm x 70mm x 9.5mm
- Weight: 0.05 kg
Key Features
- Universal partial-thread screw for robust timber construction use
- Large RW recess for maximum load transmission and fast, gap-free fastening
- Ideal power transmission with RW drive and larger contact area at the bit
- Tight-fit recess for precise positioning and fewer bit changes
- Easy countersinking in hard wood surfaces with 60° countersunk head
- Displacement milling effect reduces splitting when immersing the shank
- High breaking torque minimizes risk of screw breakage
- Milling shank integration reduces risk of injury from metal chips
- Reinforced asymmetrical thread flank geometry for higher power transmission in hardwoods
- Smooth thread start for optimized fastening
Professional Installation Requirements
- Professional installation recommended by qualified personnel experienced in timber construction to ensure proper fastening and structural integrity.
Applications
- Wood fastening in timber construction
- Temporary anchors in non-structural systems
- Wood-to-wood connections in dry indoor or wet areas
- Element construction, formwork, and timber construction
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
- Designed for efficient fastening reducing material damage and waste
Warranty Information
Warranty details available upon request from Wurth; typically includes coverage against manufacturing defects.
Available Now
The Wurth ASSY® 4 WW CSMR 60 timber screw is available for immediate purchase, ideal for timber construction, formwork, and wood fastening applications.
