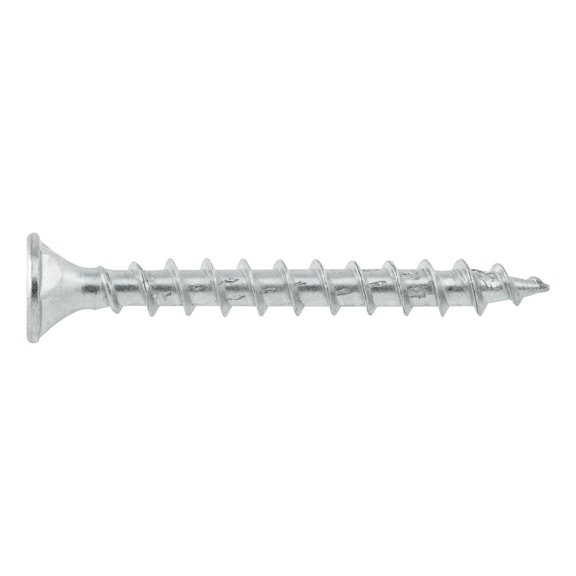

ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | 4.5mm Diameter | @Pack of 100 | by Wurth
ASSY® D Plug Screws with a hardened steel construction and zinc plating are perfect for woodworking and cabinetry. Designed for universal fastening in wood and derived timber products, these screws feature a countersunk head with milling pockets to prevent damage during installation. Ideal for professionals, they ensure a snug fit with no wobbling, making them a reliable choice for furniture assembly and dowel fittings.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | 4.5mm Diameter | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 151024503
Alternatively Known As: Wood screw, Countersunk head screw, ASSY-D screw, Timber screw, Self-drilling wood screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4.5 mm
- Length: 40 mm
- Thread length: 34 mm
- Head diameter: 8.9 mm
- Head height: 8.7 mm
- Internal drive: RW20
- Head type: Countersunk head with milling pockets
- Core diameter: 2.7 mm
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Suitable materials: Board ply wood (BSP), Dowel, Wood, Derived timber product, Hardwood, LVL, Softwood
- Approval: European Technical Approval ETA-11/0190
- Dimensions (H x L x W): 8.7mm x 40mm x 8.9mm
- Weight: 0.1 kg
Key Features
- Without drill tip for use with plastic anchors
- Counter thread or ring thread for higher anchor load capacity
- RW drive for optimal power transmission
- Very good snug fit with no wobbling
- Milling pockets for fastening wooden fixtures without damage
- Asymmetrical thread for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Fitting
- Dowel
- Cabinet
- Furniture
- Universal fastening in wood and derived timber products
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth ASSY® D Plug Screw Countersunk Head 100 PCS is available for immediate purchase, ideal for woodworking, cabinetry, and furniture applications.
