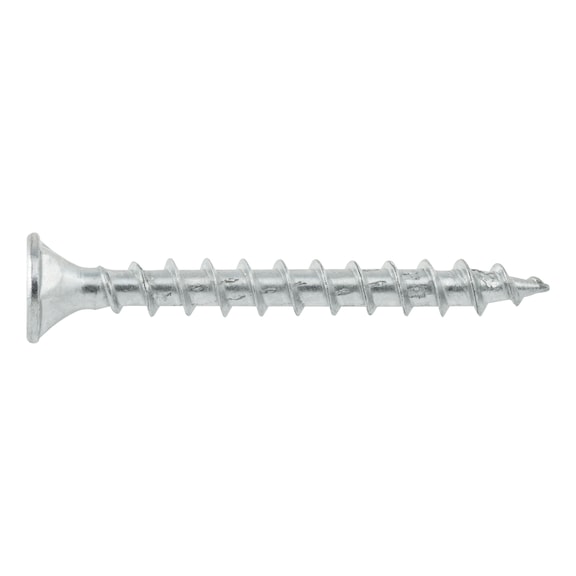

ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | 5mm Diameter | @Pack of 100 | by Wurth
ASSY® D Plug Screws with a hardened steel construction and zinc plating are perfect for timber and construction fastening applications. Designed for optimal power transmission with an RW drive, these screws ensure a snug fit without wobbling. Ideal for professionals, they comply with European Technical Approval ETA-11/0190, making them a reliable choice for roof and element construction.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | 5mm Diameter | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 151020506
Alternatively Known As: ASSY D screw, countersunk head wood screw, timber screw, plastic anchor screw, self-drilling wood screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 5 mm
- Length: 70 mm
- Thread length: 54 mm
- Head diameter: 9.6 mm
- Head height: 9.35 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: European Technical Approval ETA-11/0190
- Dimensions (H x L x W): 9.35mm x 70mm x 9.6mm
- Weight: 0.05 kg
Key Features
- Without drill tip for use with plastic anchors
- Counter thread or ring thread for higher anchor load capacity
- RW drive for optimal power transmission
- Very good snug fit with no wobbling
- Milling pockets for fastening wooden fixtures without damage
- Asymmetrical thread for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Roof construction
- Dowel fastening
- Element construction
- Timber construction
- Timber panel construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth warranty policy for details.
Available Now
Wurth ASSY® D Plug Screw Countersunk Head 100 PCS is available for immediate purchase, ideal for timber and construction fastening applications.
