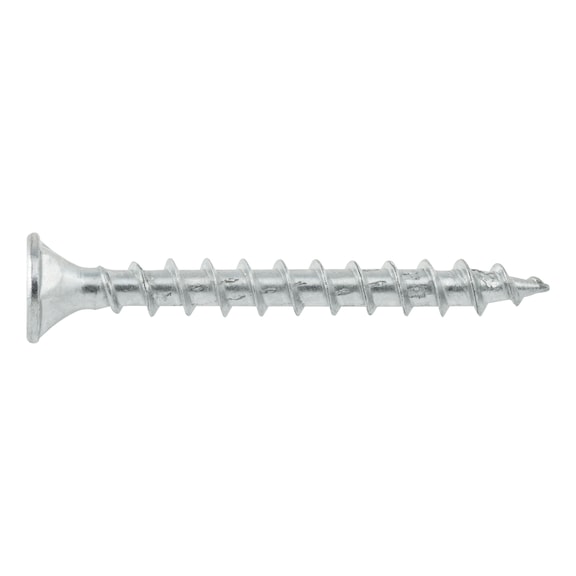

ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | 100 PCS | by Wurth
ASSY® D Plug Screws with a countersunk head are crafted from hardened steel and feature a durable zinc plating, making them ideal for woodworking and cabinetry. Designed for professional use, these screws ensure a snug fit without wobbling, perfect for fastening in various materials including plywood and hardwood. With European Technical Approval ETA-11/0190, they provide reliable performance for all your fastening needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | 100 PCS | by Wurth
Brand: Wurth
SKU: 151020404
Alternatively Known As: ASSY D screw, countersunk head wood screw, self-drilling timber screw, plastic anchor screw

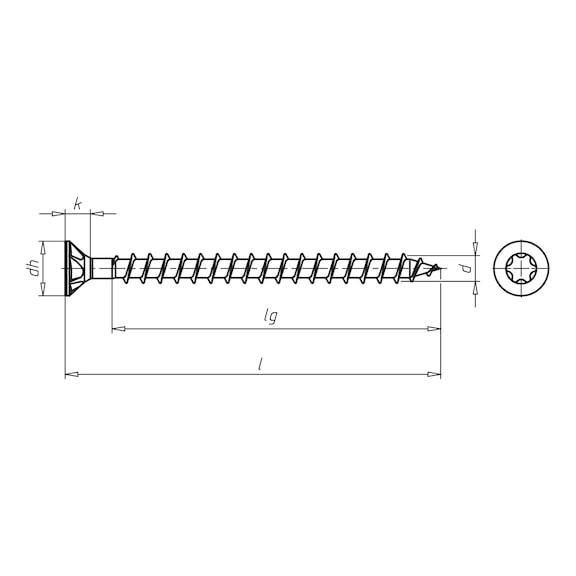

Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4 mm
- Length: 45 mm
- Thread length: 39.5 mm
- Head diameter: 8 mm
- Head height: 7.8 mm
- Internal drive: RW20
- Head type: Countersunk head with milling pockets
- Core diameter: 2.5 mm
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- European Technical Approval: ETA-11/0190
- Dimensions (H x L x W): 7.8mm x 45mm x 8mm
- Weight: 0.1 kg
Key Features
- Without drill tip for use with plastic anchors
- Counter thread or ring thread for higher anchor load capacity
- RW drive for optimal power transmission
- Very good snug fit with no wobbling
- Milling pockets for fastening wooden fixtures without damage
- Asymmetrical thread for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and load capacity.
Applications
- Fitting
- Dowel
- Cabinet
- Furniture
- Universal fastening in board ply wood, dowel, wood, derived timber products, hardwood, LVL, softwood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth's warranty policy for details.
Available Now
Wurth ASSY® D Plug Screw Countersunk Head 100 PCS is available for immediate purchase, ideal for woodworking, cabinetry, and general fastening applications.
