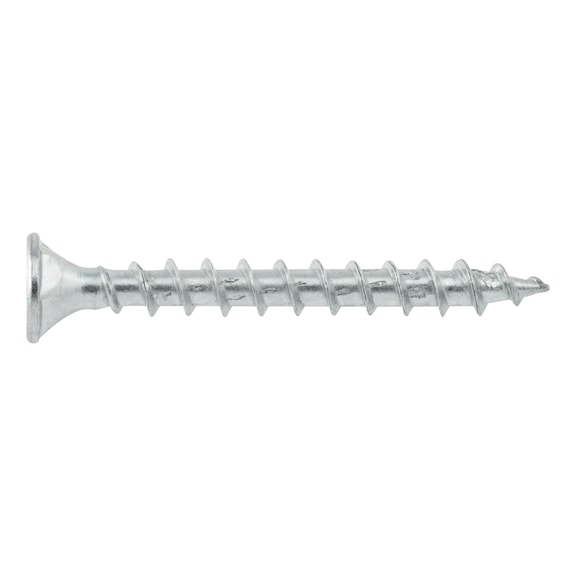

ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | RW10 Drive | by Wurth
The ASSY® D Plug Screw Countersunk Head is designed for optimal fastening in timber and wood-based materials. Made from hardened steel and featuring a zinc-plated surface, this screw ensures durability and a snug fit without wobbling. Ideal for furniture, cabinetry, and general construction, it offers a professional-grade solution for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | RW10 Drive | by Wurth
Brand: Wurth
SKU: 151023503
Alternatively Known As: ASSY D screw, countersunk head wood screw, timber screw, plug screw, self-drilling screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 3.5 mm
- Length: 40 mm
- Thread length: 35 mm
- Head diameter: 7 mm
- Head height: 6.8 mm
- Internal drive: RW10
- Approval: ETA-11/0190
- Suitable materials: Board ply wood, dowel, wood, derived timber product, hardwood, LVL, softwood
- Head type: Countersunk head with milling pockets
- Core diameter: 2.1 mm
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Dimensions (H x L x W): 6.8mm x 40mm x 7mm
- Weight: 0.02 kg
Key Features
- Without drill tip for use with plastic anchors
- Counter thread or ring thread for higher anchor load capacity
- RW drive for optimal power transmission
- Very good snug fit with no wobbling
- Milling pockets on countersunk head for fastening wooden fixtures without damage
- Asymmetrical thread for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially in structural applications.
Applications
- Fitting
- Dowel
- Cabinet
- Furniture
- Universal fastening in board ply wood, dowel, wood, derived timber products, hardwood, LVL, softwood
Standards & Compliance
- Complies with AS/NZS 4785 - Timber screws (aligned with European Technical Approval ETA-11/0190)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Wurth provides standard manufacturer warranty covering defects in material and workmanship.
Available Now
The Wurth ASSY® D Plug Screw Countersunk Head is available now for immediate purchase. Ideal for timber and wood-based material fastening in furniture, cabinetry, and general construction.
