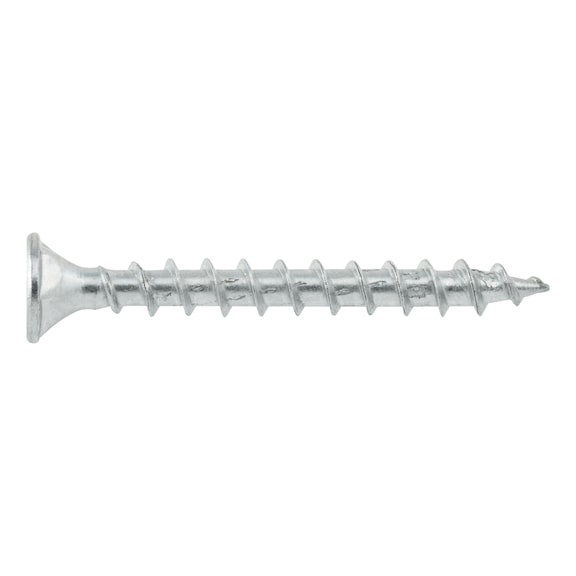

ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | RW20 Drive | by Wurth
The ASSY® D Plug Screw Countersunk Head is designed for reliable timber fastening, featuring a hardened steel construction and zinc plating for durability. Ideal for cabinetry, furniture, and construction applications, this screw ensures a snug fit with its RW20 drive and countersunk head, providing optimal power transmission without wobbling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | RW20 Drive | by Wurth
Brand: Wurth
SKU: 151024505
Alternatively Known As: ASSY D screw, countersunk head wood screw, timber fastener screw, plastic anchor screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4.5 mm
- Length: 50 mm
- Thread length: 44 mm
- Head diameter: 8.9 mm
- Head height: 8.7 mm
- Internal drive: RW20
- Head type: Countersunk head with milling pockets
- Core diameter: 2.7 mm
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- European Technical Approval: ETA-11/0190
- Dimensions (H x L x W): 8.7mm x 50mm x 8.9mm
- Weight: 0.05 kg
Key Features
- Without drill tip for use with plastic anchors
- Counter thread or ring thread for higher anchor load capacity
- RW drive for optimal power transmission
- Very good snug fit, screw locates securely with no wobbling
- Milling pockets for fastening wooden fixtures without damage
- Asymmetrical thread for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Fitting
- Dowel
- Cabinet
- Furniture
- Universal fastening in board ply wood, dowel, wood, derived timber products, hardwood, LVL, softwood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Wurth offers standard manufacturer warranty against defects. Please refer to Wurth's warranty policy for details.
Available Now
The Wurth ASSY® D Plug Screw Countersunk Head is available for immediate purchase, ideal for timber fastening applications in construction, cabinetry, and furniture making.
