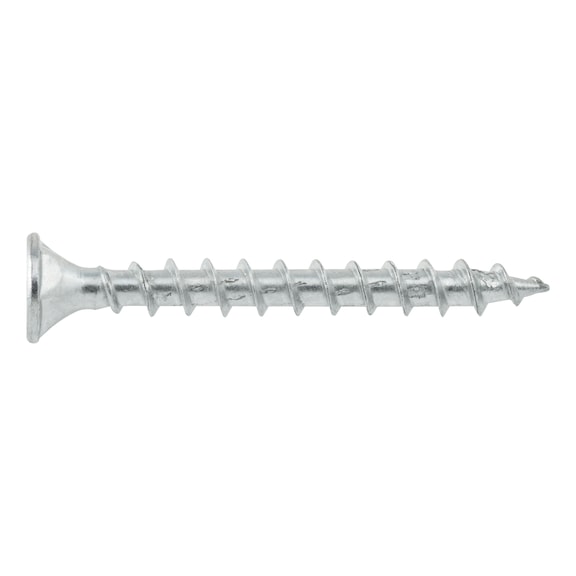

ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | RW20 Drive | by Wurth
The ASSY® D Plug Screw Countersunk Head is designed for optimal fastening in timber and wood-based applications. Made from hardened steel with a durable zinc plating, it features a countersunk head and RW20 drive for superior power transmission. Ideal for professionals, this screw ensures a snug fit without wobbling, making it perfect for furniture and cabinet installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Countersunk Head | Hardened Steel | Zinc Plated | RW20 Drive | by Wurth
Brand: Wurth
SKU: 151024507
Alternatively Known As: ASSY D screw, countersunk head wood screw, plastic anchor screw, timber fastener screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4.5 mm
- Length: 60 mm
- Thread length: 50 mm
- Head diameter: 8.9 mm
- Head height: 8.7 mm
- Internal drive: RW20
- Approval: ETA-11/0190
- Suitable materials: Board ply wood, dowel, wood, derived timber product, hardwood, LVL, softwood
- Head type: Countersunk head with milling pockets
- Core diameter: 2.7 mm
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Dimensions (H x L x W): 8.7mm x 60mm x 8.9mm
- Weight: 0.05 kg
Key Features
- Without drill tip for use with plastic anchors
- Counter thread or ring thread for higher anchor load capacity
- RW drive for optimal power transmission
- Very good snug fit with no wobbling
- Milling pockets for fastening wooden fixtures without damage
- Asymmetrical thread for low screw-in torque and high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Fitting
- Dowel
- Cabinet
- Furniture
- Universal fastening in board ply wood, dowel, wood, derived timber products, hardwood, LVL, softwood
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY® D Plug Screw Countersunk Head is available for immediate purchase, ideal for timber and wood-based construction and furniture applications.
