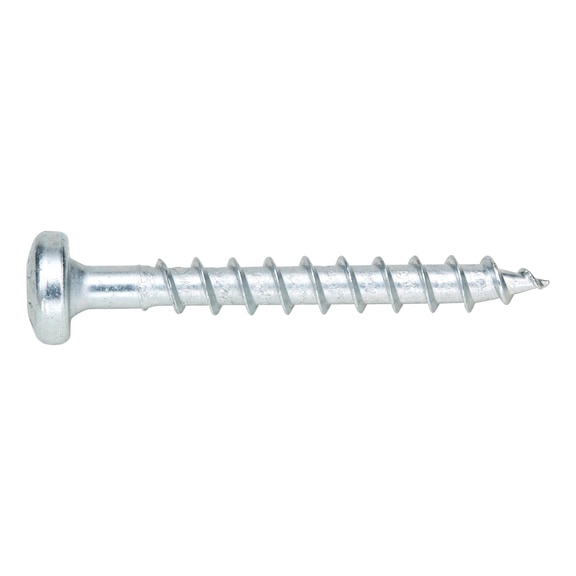

ASSY® D Plug Screw Pan Head | Hardened Steel | Zinc Plated | 50 PCS | by Wurth
ASSY® D Plug Screws with a hardened steel construction and zinc plating are perfect for timber and plastic anchor fastening applications. Designed without a drill tip, these screws offer excellent tight fit and increased anchor load capacity, making them ideal for professional installations in various wood types. With European Technical Approval ETA-11/0190, they ensure reliable performance and durability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Hardened Steel | Zinc Plated | 50 PCS | by Wurth
Brand: Wurth
SKU: 153024507
Alternatively Known As: Pan head wood screws, ASSY D screws, timber screws without drill tip, plastic anchor screws

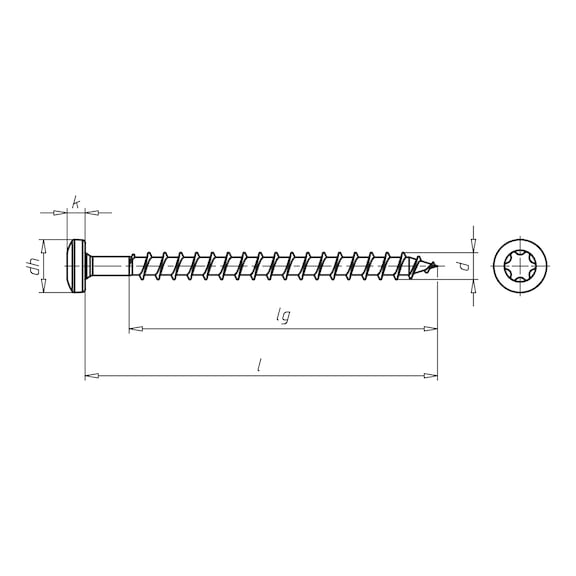

Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4.5 mm
- Length: 60 mm
- Thread length: 50 mm
- Head diameter: 9 mm
- Head height: 9 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Core diameter: 2.7 mm
- RoHS-compliant: Yes
- Approval: European Technical Approval ETA-11/0190
- Dimensions (H x L x W): 9mm x 60mm x 9mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread or ring thread
- Increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design
- Low screw-in torque with high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified tradesperson or professional recommended to ensure correct use with plastic anchors and timber materials.
Applications
- Fitting in board ply wood (BSP), dowel, wood, derived timber products, hardwood, LVL, softwood
- Use with plastic anchors
- Metal plate and universal wood fastening
Standards & Compliance
- AS/NZS 4785 – Timber fasteners and screws (related standard for timber screws)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip are available for immediate purchase, ideal for timber and plastic anchor fastening applications.
