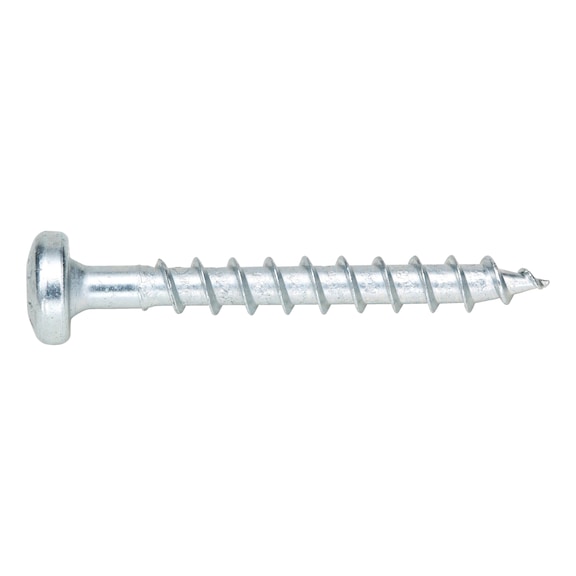

ASSY® D Plug Screw Pan Head | Hardened Steel | Zinc Plated | Self-Drilling | @Pack of 100 | by Wurth
ASSY® D Plug Screw Pan Head is designed for efficient fastening in timber and metal applications. Made from hardened steel and zinc plated for durability, these screws feature a unique self-drilling design that eliminates the need for a drill tip. Ideal for professionals, they provide excellent load capacity and a tight fit, making them perfect for various materials including plywood and hardwood.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Hardened Steel | Zinc Plated | Self-Drilling | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 153024502
Alternatively Known As: Pan Head Wood Screw, ASSY D Screw, Self-Drilling Wood Screw, Timber Fastener Screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated

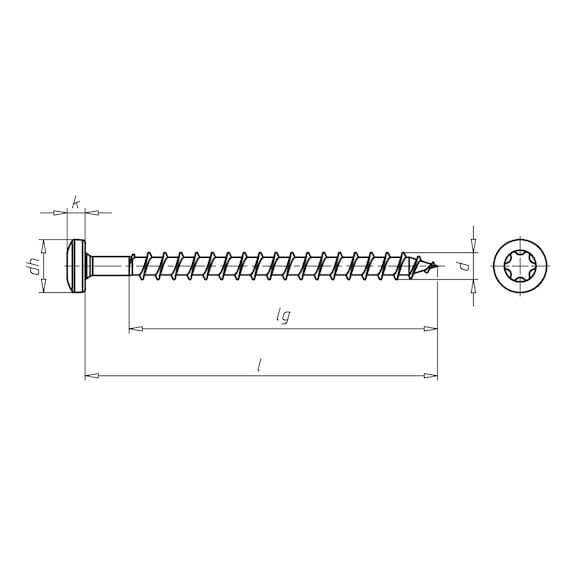

- Nominal diameter (d): 4.5 mm
- Length (l): 35 mm
- Thread length (lg): 29 mm
- Head diameter (d h): 9 mm
- Head height (k): 9 mm
- Internal drive: RW20
- Approval: ETA-11/0190
- Suitable materials: Board ply wood (BSP), Dowel, Wood, Derived timber product, Hardwood, LVL, Softwood
- Area of application: Fitting, Metal plate, wood, Dowel, Universal
- Head type: Pan head
- Core diameter: 2.7 mm
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Max. screw-in angle: 90 Degree
- Min. screw-in angle: 0 Degree
- RoHS-compliant: Yes
- Dimensions (H x L x W): 9mm x 35mm x 9mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread, or ring thread
- Increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design
- Low screw-in torque with high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper anchoring and load capacity.
Applications
- Fitting applications involving metal plates and wood
- Suitable for use with plastic anchors
- Ideal for board ply wood (BSP), dowel, wood, derived timber products, hardwood, LVL, and softwood
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies. Please refer to Wurth for detailed warranty terms.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip 100 PCS are available for immediate purchase, ideal for timber and metal plate fastening applications.
