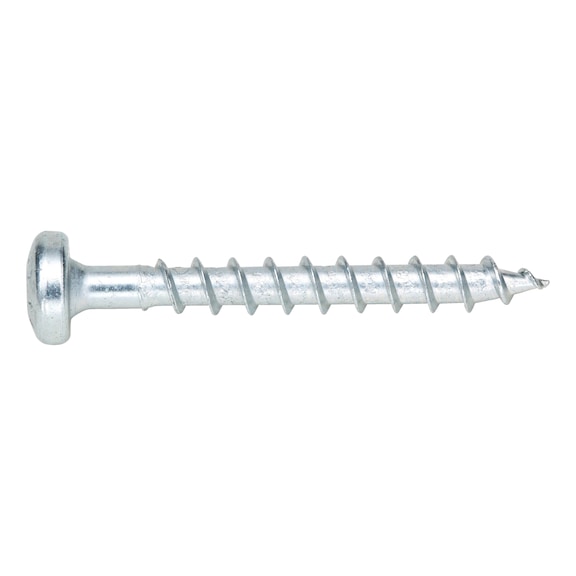

ASSY® D Plug Screw Pan Head | Hardened Steel | Zinc Plated | Self-Drilling | @Pack of 100 | by Wurth
ASSY® D Plug Screws with a pan head design are perfect for wood fastening and dowel installation. Made from hardened steel and zinc plated for durability, these screws feature an asymmetrical thread design for low screw-in torque and high over-turning force. Ideal for professional installations in timber and derived timber products, they ensure excellent tight fit with no wobbling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Hardened Steel | Zinc Plated | Self-Drilling | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 153024503
Alternatively Known As: Pan head wood screw, ASSY D screw, timber screw, self-drilling screw, wood fastening screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4.5 mm
- Length: 40 mm
- Thread length: 34 mm
- Head diameter: 9 mm
- Head height: 9 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Core diameter: 2.7 mm
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: European Technical Approval ETA-11/0190
- Dimensions (H x L x W): 9mm x 40mm x 9mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread or ring thread
- Increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design
- Low screw-in torque with high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially in structural applications.
Applications
- Fitting metal plates
- Wood fastening
- Dowel installation
- Universal fastening in timber and derived timber products
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable hardened steel construction for long service life reducing replacement frequency
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip are available for immediate purchase, ideal for timber and metal plate fastening applications.
