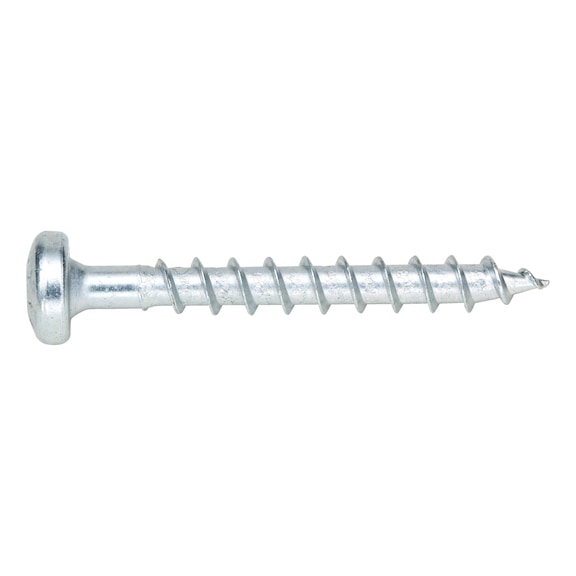

ASSY® D Plug Screw Pan Head | Zinc Plated | Hardened Steel | Self-Drilling | @Pack of 100 | by Wurth
ASSY® D Plug Screw Pan Head is designed for efficient wood fastening without a drill tip, featuring a zinc-plated finish and hardened steel construction. Ideal for timber and metal plate applications, these screws offer excellent tight fit and increased anchor load capacity, making them perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY® D Plug Screw Pan Head | Zinc Plated | Hardened Steel | Self-Drilling | @Pack of 100 | by Wurth
Brand: Wurth
SKU: 153024504
Alternatively Known As: Pan head wood screw, ASSY D screw, timber screw, self-drilling screw, wood fastening screw
Technical Specifications
- Material: Hardened steel
- Surface: Zinc plated
- Nominal diameter: 4.5 mm
- Length: 45 mm
- Thread length: 39 mm
- Head diameter: 9 mm
- Head height: 9 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Coarse thread
- Shape of tip: Tip
- Core diameter: 2.7 mm
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 9mm x 45mm x 9mm
- Weight: 0.05 kg
Key Features
- Screw without drill tip, counter thread or ring thread
- Increased anchor load capacity
- RW recess for optimal power transmission
- Excellent tight fit with no wobbling
- Asymmetrical thread design
- Low screw-in torque with high over-turning force
- European Technical Approval ETA-11/0190 for self-drilling screws as timber fasteners
Professional Installation Requirements
- Installation by a qualified tradesperson or professional is recommended to ensure proper fastening and compliance with structural requirements.
Applications
- Fitting metal plates
- Wood fastening
- Dowel installation
- Universal fastening in timber and derived timber products
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant material ensuring reduced hazardous substances
- Durable hardened steel construction for long-lasting use reducing waste
Warranty Information
Wurth provides warranty against manufacturing defects as per company policy.
Available Now
Wurth ASSY® D Pan Head Screws without drill tip 100 PCS are available for immediate purchase, ideal for timber and metal plate fastening applications.
