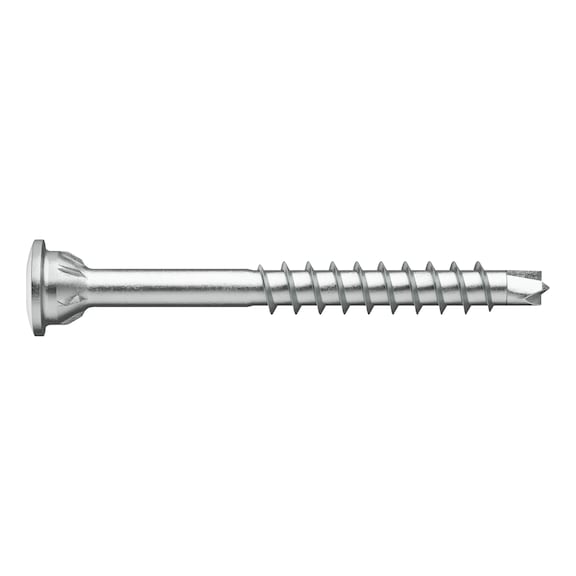

ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | Partial Thread & Top Head | @Pack of 500 | by Wurth
ASSY®plus 4 A2 TH glass strip screw is crafted from high-quality A2 stainless steel, featuring a partial thread and a top head design for seamless fastening. Ideal for outdoor applications, it ensures gap-free installation close to edges of delicate glass strips and skirting boards, providing maximum reliability and stability during use. Perfect for timber construction and structural woodwork, this screw is designed for professional installation to guarantee optimal performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | Partial Thread & Top Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 166135040
Alternatively Known As: Glass strip screw, Stainless steel wood screw, Partial thread screw, A2 stainless steel screw, Outdoor timber screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 40 mm
- Thread length: 22 mm
- Screw-thread length with drill tip: 25.5 mm
- Head type: Top head with milling ribs
- Head diameter: 5.2 mm
- Head height: 3.1 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Single start thread
- Core diameter: 2.5 mm
- Shape of tip: Drilling tip
- Material: Stainless steel A2
- Surface: Plain
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Approval: ETA-11/0190
- Product weight per item: 2.5 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.1mm x 40mm x 5.2mm
- Weight: 0.0025 kg
Key Features
- Made of high quality, austenitic A2 stainless steel with small top head and milling ribs.
- Suitable for gap free fastening close to edges of delicate glass strips or skirting boards in outdoor areas constantly exposed to weathering.
- Ideal power transmission thanks to RW drive.
- More power due to larger contact area at the bit.
- More stability, one-handed working, precise positioning due to the tight-fit recess and perfect fit of the bit.
- Fewer bit changes, one bit for many screw diameters.
- Compatibility with previous AW drive.
- Precise positioning and very clean drilling due to advanced centring drill tip.
- Positioning and drilling without chipping.
- Maximum drilling performance and precise drilling process through drilling cutting edges (similar to Forstner bits).
- Precise positioning on hard surfaces without slipping thanks to centring pin.
- Quick screwing due to gentle start of thread.
- Well-designed, unobtrusive mounting of wooden components.
- Small screw head with lens-shaped rounded head for well-designed, unobtrusive mounting.
- Highly effective milling ribs prevent narrow wooden profiles from splitting.
- Maximum reliability of the screw connection due to asymmetrical single thread.
- Optimal matching of drill tip and thread geometry.
- Excellent anchoring in wood due to asymmetrical arrangement of thread flanks.
- Stainless mounting for accessible wood connections in outdoor areas exposed to weathering.
- Made of austenitic, non-magnetic and non-rusting A2 stainless steel.
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially in structural and outdoor applications.
Applications
- Outdoors
- Balcony
- Element construction
- Façades
- Wet areas
- Timber construction
- Timber panel construction
- Structural woodwork
- Play equipment
- Board walk
- Terrace
- Fence
Standards & Compliance
- AS/NZS 4785 – Timber fasteners
Environmental Benefits
- Made from corrosion-resistant stainless steel ensuring long product life and reduced replacement frequency.
- RoHS-compliant, ensuring no hazardous substances are used.
Warranty Information
Warranty information not specified; refer to Wurth standard product warranty terms.
Available Now
Available for immediate purchase, ideal for outdoor timber and glass strip fastening applications.
