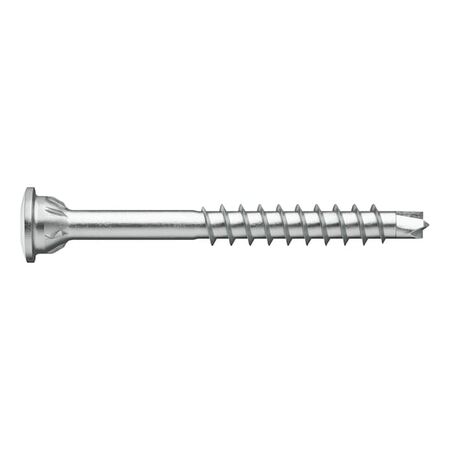

ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | Small Top Head & Milling Ribs | @Pack of 500 | by Wurth
The ASSY®plus 4 A2 TH Glass Strip Screw is designed for outdoor timber and glass strip fastening, featuring high-quality A2 stainless steel construction with a small top head and milling ribs. Ideal for delicate applications, it ensures gap-free fastening close to edges, providing maximum reliability and stability. Perfect for professionals in timber construction and façade installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | Small Top Head & Milling Ribs | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 16613050
Alternatively Known As: Glass strip screw, Stainless steel wood screw, Partial thread screw, A2 stainless steel screw, Timber construction screw
Technical Specifications
- Dimensions (H x L x W): 3.5mm x 50mm x 5.2mm
- Weight: 0.09 kg
Key Features
- Made of high quality, austenitic A2 stainless steel with small top head and milling ribs
- Suitable for gap free fastening close to edges of delicate glass strips or skirting boards in outdoor areas exposed to weathering
- Ideal power transmission thanks to RW drive with larger contact area at the bit
- More stability and precise positioning due to tight-fit recess and perfect fit of the bit
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and very clean drilling without chipping
- Maximum drilling performance through drilling cutting edges similar to Forstner bits
- Quick screwing due to gentle start of thread
- Small lens-shaped rounded screw head for unobtrusive mounting
- Highly effective milling ribs prevent narrow wooden profiles from splitting
- Maximum reliability due to asymmetrical single thread
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical arrangement of thread flanks
- Non-magnetic and non-rusting A2 stainless steel
Professional Installation Requirements
- Recommended installation by professionals familiar with fastening delicate glass strips and timber constructions to ensure proper use and safety.
Applications
- Outdoors
- Balcony
- Element construction
- Façades
- Wet areas
- Timber construction
- Timber panel construction
- Structural woodwork
- Play equipment
- Board walk
- Terrace
- Fence
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made of corrosion-resistant stainless steel ensuring long product life and reducing waste
- RoHS-compliant, ensuring no hazardous substances are used
Warranty Information
Warranty information available upon request from Wurth.
Available Now
The Wurth ASSY®plus 4 A2 TH Glass Strip Screw is available for immediate purchase, ideal for outdoor timber and glass strip fastening applications.
