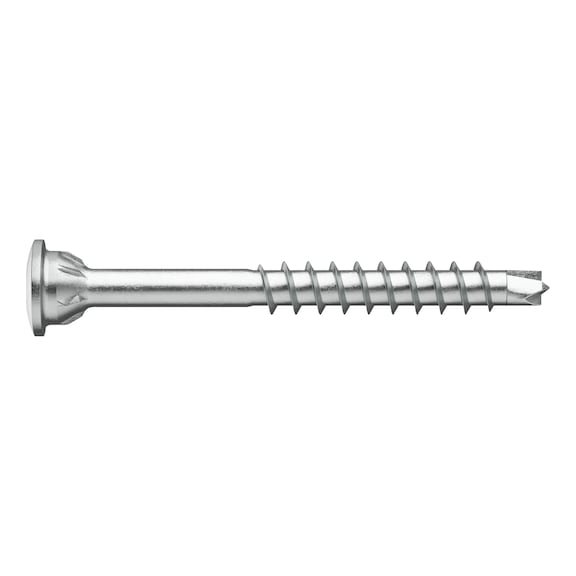

ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | 60° Top Head | 500 PCS | by Wurth
The ASSY®plus 4 A2 TH glass strip screw is crafted from high-quality A2 stainless steel, featuring a 60° top head design and milling ribs for optimal fastening. Perfect for outdoor applications, it ensures gap-free installation close to edges of delicate glass strips and skirting boards, providing maximum reliability and stability during use.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | 60° Top Head | 500 PCS | by Wurth
Brand: Wurth
SKU: 16613045
Alternatively Known As: Stainless steel wood screw, A2 stainless screw, Partial thread screw, Glass strip screw, Outdoor timber screw
Technical Specifications
- Nominal diameter: 3 mm
- Length: 45 mm
- Thread length: 22 mm
- Screw-thread length with drill tip: 25.5 mm
- Head type: Top head 60 degree with milling ribs
- Head diameter: 5.2 mm
- Head height: 3.5 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Single start thread
- Core diameter: 2.1 mm
- Shape of tip: Drilling tip
- Material: Stainless steel A2
- Surface: Plain
- Max. screw-in angle: 90 Degree
- Min. screw-in angle: 0 Degree
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Approval: ETA-11/0190
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 45mm x 5.2mm
- Weight: 0.00166 kg
Key Features
- Made of high quality, austenitic A2 stainless steel with small top head and milling ribs.
- Suitable for gap free fastening close to edges of delicate glass strips or skirting boards in outdoor areas constantly exposed to weathering.
- Ideal power transmission thanks to RW drive.
- More power due to larger contact area at the bit.
- More stability, one-handed working, precise positioning due to the tight-fit recess and perfect fit of the bit.
- Fewer bit changes, one bit for many screw diameters.
- Compatibility with previous AW drive.
- Precise positioning and very clean drilling due to advanced centring drill tip.
- Positioning and drilling without chipping.
- Maximum drilling performance and precise drilling process through drilling cutting edges (similar to Forstner bits).
- Precise positioning on hard surfaces without slipping thanks to centring pin.
- Quick screwing due to gentle start of thread.
- Well-designed, unobtrusive mounting of wooden components.
- Small screw head with lens-shaped rounded head for well-designed, unobtrusive mounting.
- Highly effective milling ribs prevent narrow wooden profiles from splitting.
- Maximum reliability of the screw connection due to asymmetrical single thread.
- Optimal matching of drill tip and thread geometry.
- Excellent anchoring in wood due to asymmetrical arrangement of thread flanks.
- Stainless mounting for accessible wood connections in outdoor areas exposed to weathering.
- Made of austenitic, non-magnetic and non-rusting A2 stainless steel.
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Outdoors
- Balcony
- Element construction
- Façades
- Wet areas
- Timber construction
- Timber panel construction
- Structural woodwork
- Play equipment
- Board walk
- Terrace
- Fence
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made from corrosion-resistant stainless steel ensuring long product life and reducing replacement waste.
- RoHS-compliant, ensuring no hazardous substances are used.
Warranty Information
Warranty information not specified by manufacturer; typically covered under standard product quality guarantees.
Available Now
Wurth ASSY®plus 4 A2 TH Glass Strip Screw is available for immediate purchase, ideal for outdoor timber and glass strip fastening applications.
