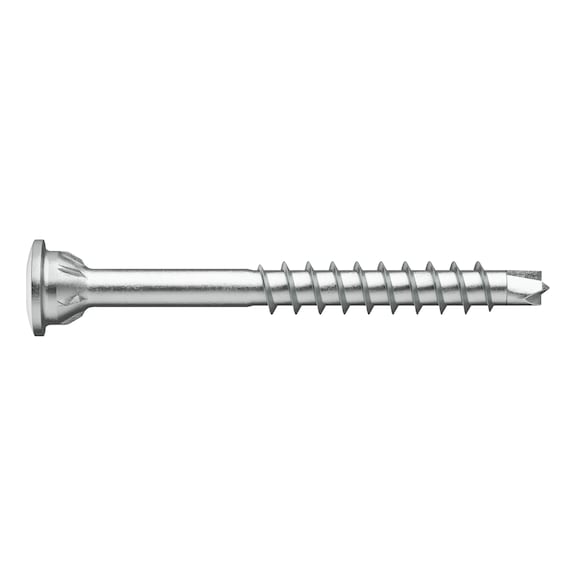

ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | 60° Top Head | 500 PCS | by Wurth
ASSY®plus 4 A2 TH glass strip screw is crafted from high-quality A2 stainless steel, featuring a 60° top head and partial thread design. Perfect for outdoor timber construction and glass strip fastening, this screw ensures reliable performance with its advanced centring drill tip and milling ribs that prevent wood splitting. Ideal for professionals seeking durability and precision in their installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 A2 TH Glass Strip Screw | A2 Stainless Steel | 60° Top Head | 500 PCS | by Wurth
Brand: Wurth
SKU: 166135060
Alternatively Known As: Stainless Steel Glass Strip Screw, A2 Partial Thread Wood Screw, Outdoor Timber Screw, Wurth ASSY plus Screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 60 mm
- Thread length: 27 mm
- Screw-thread length with drill tip: 30.5 mm
- Head type: Top head 60 degree with milling ribs
- Head diameter: 5.2 mm
- Head height: 3.1 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Core diameter: 2.5 mm
- Shape of tip: Drilling tip
- Material: Stainless steel A2
- Surface: Plain
- Max screw-in angle: 90 Degree
- Min screw-in angle: 0 Degree
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood
- Product weight per item: 2.952 g
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 3.1mm x 60mm x 5.2mm
- Weight: 1.48 kg
Key Features
- Made of high quality, austenitic A2 stainless steel with small top head and milling ribs
- Suitable for gap free fastening close to edges of delicate glass strips or skirting boards in outdoor areas exposed to weathering
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and perfect fit of the bit
- Advanced centring drill tip for precise positioning and very clean drilling without chipping
- Maximum drilling performance through drilling cutting edges similar to Forstner bits
- Centring pin prevents slipping on hard surfaces
- Gentle start of thread for quick screwing
- Small lens-shaped rounded screw head for unobtrusive mounting
- Milling ribs prevent narrow wooden profiles from splitting
- Asymmetrical single thread for maximum reliability
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
- Non-magnetic, non-rusting A2 stainless steel for outdoor use
Professional Installation Requirements
- Recommended installation by professionals familiar with timber and outdoor construction to ensure proper fastening and durability.
Applications
- Outdoors
- Balcony
- Element construction
- Façades
- Wet areas
- Timber construction
- Timber panel construction
- Structural woodwork
- Play equipment
- Board walk
- Terrace
- Fence
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- Made of durable stainless steel ensuring long product life and reducing waste
- RoHS-compliant, ensuring restriction of hazardous substances
Warranty Information
Warranty details available upon request from Wurth; product complies with ETA-11/0190 approval.
Available Now
Available for immediate purchase, ideal for outdoor timber construction, glass strip fastening, and structural woodwork applications.
