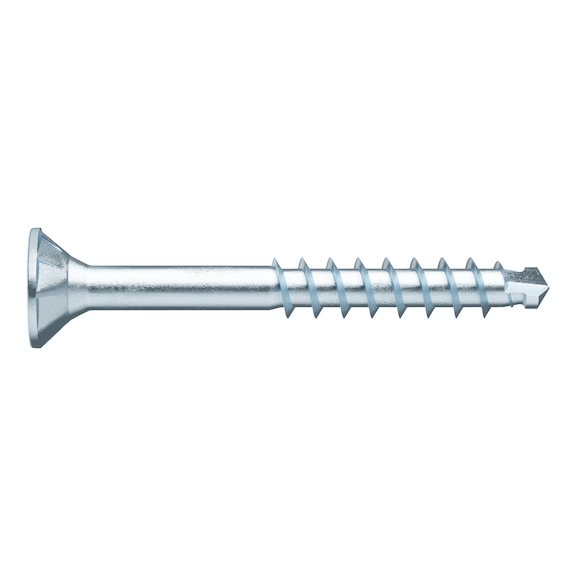

ASSY®plus 4 CSMP SPECIAL Universal Screw | Hardened Zinc-Plated Steel | Countersunk Head | @Pack of 250 | by Wurth
The ASSY®plus 4 CSMP SPECIAL universal screw is designed for optimal performance in furniture assembly and cabinet making. With a hardened zinc-plated steel construction and a unique countersunk head, it ensures gap-free attachment without pre-drilling. Ideal for wood-wood connections, this screw features an RW drive for enhanced power transmission and stability, making it perfect for professional tradespeople and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMP SPECIAL Universal Screw | Hardened Zinc-Plated Steel | Countersunk Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 178914055
Alternatively Known As: Wood screw, Countersunk wood screw, Zinc plated wood screw, Partial thread screw, RW drive screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 55 mm
- Thread length: 35 mm
- Screw-thread length with drill tip: 38 mm
- Head type: Countersunk head with milling pockets
- Head diameter: 8 mm
- Head height: 2.5 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Core diameter: 2.5 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood, construction timber, OSB, chipboard, solid wood panel
- Approval: ETA-11/0190
- Product weight per item: 5 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 55mm x 8mm
- Weight: 1.25 kg
Key Features
- Universal partial thread with countersunk head and milling pockets
- Suitable for gap-free attachment close to edges without pre-drilling in wood-wood connections
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess
- Compatibility with previous AW drive
- Small edge distances possible due to wedge-shaped drill tip with parallel cutting edges
- Assembly without gaps, preventing wood splitting and rupture
- Clean countersinking in softwood or wood materials
- No chipping in coated chipboards due to improved milling effect and increased milling pockets
- Perfect fit of 90° head in fitting parts with metal countersinks
- Maximum reliability due to asymmetrical single thread
- Excellent anchoring in wood due to asymmetrical thread flank arrangement
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure correct use and optimal performance.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- AS/NZS 4785 – Timber screws
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Comes with Wurth's standard product warranty against manufacturing defects.
Available Now
The Wurth ASSY®plus 4 CSMP SPECIAL universal screw is available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
