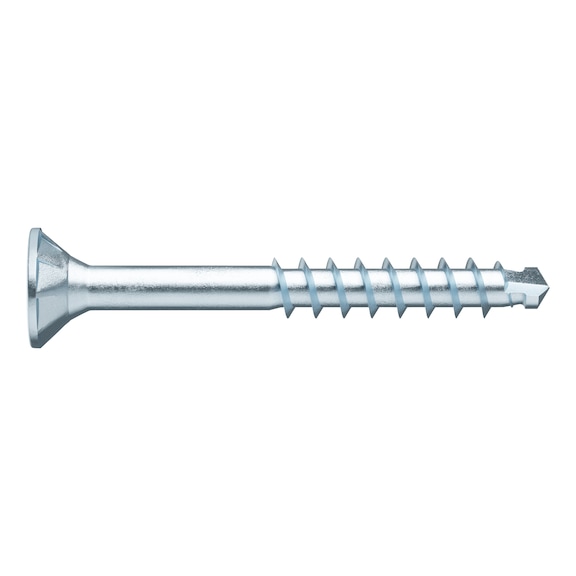

ASSY®plus 4 CSMP SPECIAL Universal Screws | Hardened Zinc-Plated Steel | Countersunk Head | @Pack of 200 | by Wurth
ASSY®plus 4 CSMP SPECIAL universal screws are designed for optimal performance in furniture assembly and interior fitting. Made from hardened zinc-plated steel, these screws feature a countersunk head and partial thread for gap-free attachment without pre-drilling. Ideal for wood-wood connections, they ensure maximum reliability and stability, making them perfect for professional tradespeople and DIY enthusiasts alike.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMP SPECIAL Universal Screws | Hardened Zinc-Plated Steel | Countersunk Head | @Pack of 200 | by Wurth
Brand: Wurth
SKU: 178914070
Alternatively Known As: Wood screws, Countersunk wood screws, Zinc plated wood screws, Partial thread screws, RW drive screws
Technical Specifications
- Nominal diameter: 4 mm
- Length: 70 mm
- Thread length: 45 mm
- Screw-thread length with drill tip: 48 mm
- Head type: Countersunk head with milling pockets
- Head diameter: 8 mm
- Head height: 2.5 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Core diameter: 2.5 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface finish: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood, construction timber, OSB, chipboard, solid wood panel
- Product weight per item: 4.224 g
- RoHS compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 2.5mm x 70mm x 8mm
- Weight: 0.85 kg
Key Features
- Universal partial thread with countersunk head and milling pockets
- Suitable for gap-free attachment close to edges without pre-drilling in wood-wood connections
- Ideal power transmission due to RW drive with larger contact area at the bit
- More stability and precise positioning with tight-fit recess
- Compatibility with previous AW drive
- Small edge distances possible due to wedge-shaped drill tip with parallel cutting edges
- Assembly without gaps, preventing wood splitting and rupture
- Clean countersinking in softwood or wood material
- No chipping in coated chipboards due to improved milling effect and increased milling pockets
- Perfect fit of 90° head in fitting parts with metal countersinks
- Maximum reliability due to asymmetrical single thread
- Excellent anchoring in wood due to asymmetrical thread flank arrangement
- Optimized milling pockets for easy countersinking of screw head
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper use and secure fastening.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY®plus 4 CSMP SPECIAL universal screws are available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
