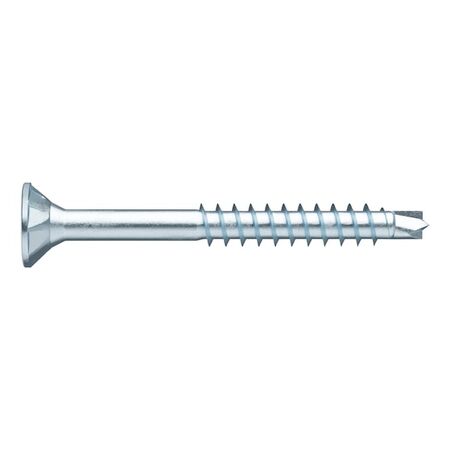

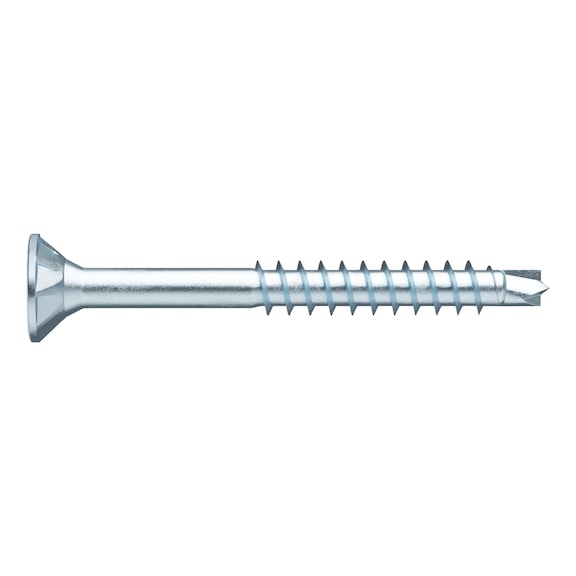

ASSY®plus 4 CSMP Universal Screw | Hardened Zinc-Plated Steel | Countersunk Milling Pocket Head | @Pack of 250 | by Wurth
ASSY®plus 4 CSMP universal screws are designed for gap-free attachment in wood-wood connections, featuring a hardened zinc-plated steel construction and a countersunk milling pocket head. Ideal for professional applications like interior fitting, cabinet making, and furniture assembly, these screws ensure optimal power transmission and precise positioning, making your projects easier and more efficient.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMP Universal Screw | Hardened Zinc-Plated Steel | Countersunk Milling Pocket Head | @Pack of 250 | by Wurth
Brand: Wurth
SKU: 17811455
Alternatively Known As: Wood screw, Countersunk wood screw, Zinc plated wood screw, Partial thread screw, RW drive screw

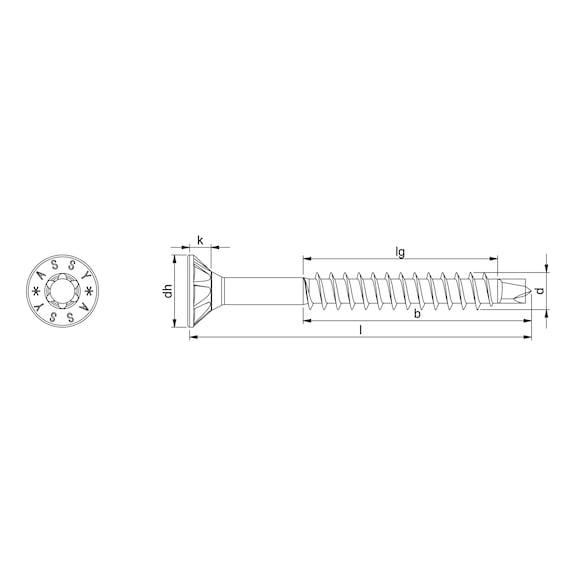

Technical Specifications
- Dimensions (H x L x W): 2.5mm x 55mm x 7.8mm
- Weight: 0.007 kg
Key Features
- Universal partial thread with countersunk head and milling pockets
- Suitable for gap-free attachment close to edges without pre-drilling in wood-wood connections

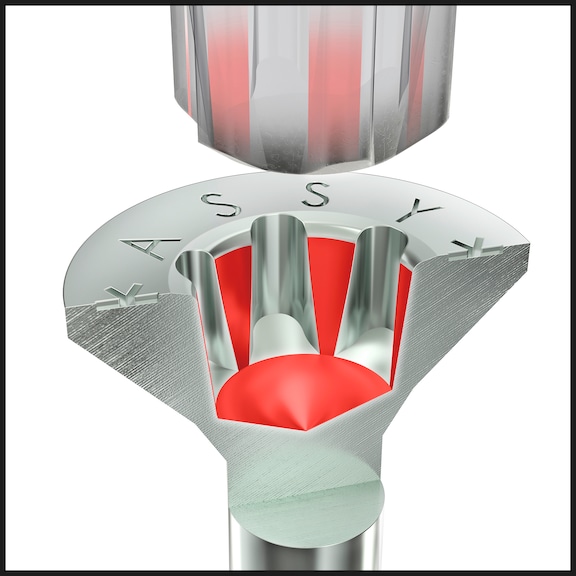

- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- One-handed working and precise positioning due to tight-fit recess
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and clean drilling without chipping
- Maximum drilling performance with through drilling cutting edges similar to Forstner bits
- Centring pin prevents slipping on hard surfaces
- Gentle start of thread for quick screwing
- Clean countersinking in softwood or wood material
- Optimised milling pockets for easy countersinking and no chipping in coated chipboards
- Perfect fit of 90° head in metal countersinks
- Asymmetrical single thread for maximum reliability
- Excellent anchoring in wood due to asymmetrical thread flanks
Professional Installation Requirements
- Recommended installation by professionals familiar with wood screw applications for optimal performance and safety.
Applications
- Interior fitting
- Cabinet making
- Store construction
- Exhibition stand construction
- Furniture assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product approved under ETA-11/0190.
Available Now
Available for immediate purchase, ideal for interior fitting, cabinetry, furniture, and exhibition stand construction.
