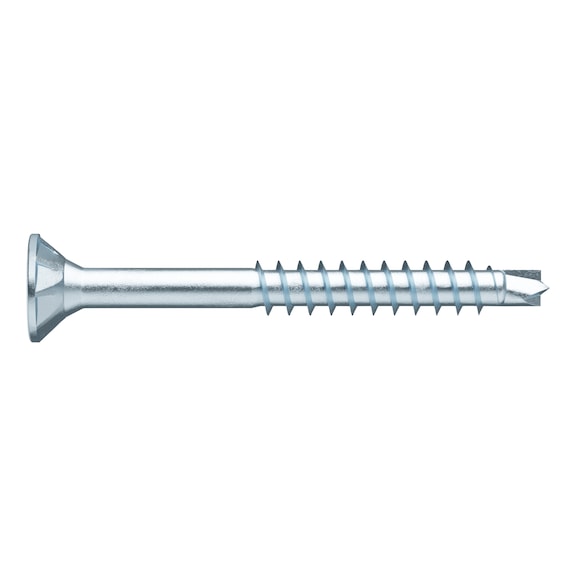

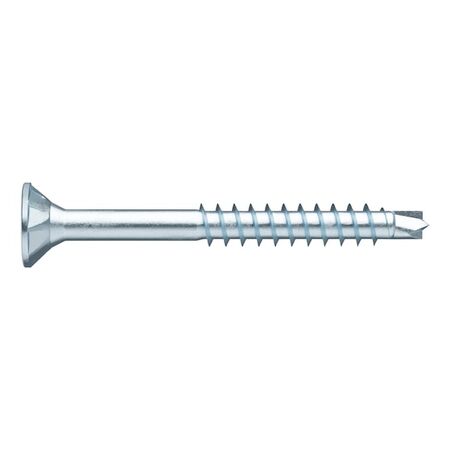

ASSY®plus 4 CSMP Universal Screw | Hardened Zinc-Plated Steel | Countersunk Milling Pocket Head | @Pack of 500 | by Wurth
ASSY®plus 4 CSMP universal screws are designed for reliable fastening in wood applications, featuring a hardened zinc-plated steel construction and a countersunk milling pocket head. Ideal for interior fittings and furniture assembly, these screws ensure gap-free attachment close to edges without pre-drilling, providing excellent anchoring and power transmission with their RW drive.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMP Universal Screw | Hardened Zinc-Plated Steel | Countersunk Milling Pocket Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 17811435
Alternatively Known As: Wood screws, Countersunk screws, Zinc plated wood screws, Partial thread screws, RW drive screws
Technical Specifications
- Nominal diameter: 4 mm
- Length: 35 mm
- Thread length: 18 mm
- Screw-thread length with drill tip: 21.5 mm
- Head type: Countersunk head with milling pockets
- Head diameter: 7.8 mm
- Head height: 2.5 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Thread form: Single start thread
- Core diameter: 2.5 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface finish: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood, construction timber
- Approval: ETA-11/0190
- Product weight per item: 1.968 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 2.5mm x 35mm x 7.8mm
- Weight: 0.002 kg
Key Features
- Universal partial thread with countersunk head and milling pockets
- Suitable for gap-free attachment close to edges without pre-drilling in wood-wood connections
- Ideal power transmission thanks to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and clean drilling without chipping
- Maximum drilling performance with through drilling cutting edges similar to Forstner bits
- Centring pin prevents slipping on hard surfaces
- Gentle start of thread for quick screwing
- Optimised milling pockets for easy countersinking and no chipping in coated chipboards
- Perfect fit of 90° head in metal countersinks
- Asymmetrical single thread for maximum reliability
- Excellent anchoring in wood due to asymmetrical thread flanks
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Interior fitting
- Cabinet construction
- Store construction
- Exhibition stand construction
- Furniture assembly
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
Wurth ASSY®plus 4 CSMP universal screws are available for immediate purchase, ideal for interior wood fittings and furniture construction.
