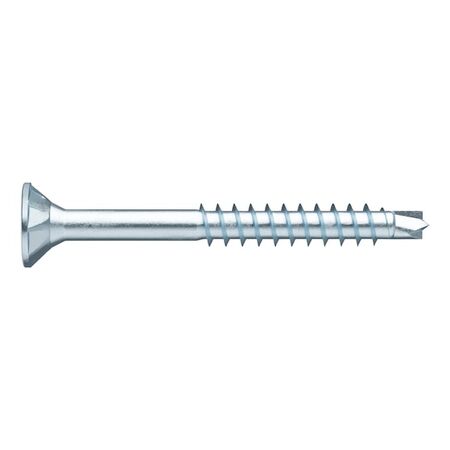

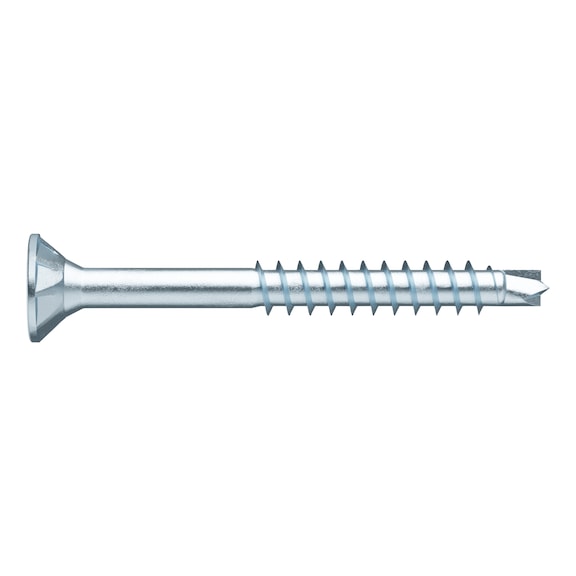

ASSY®plus 4 CSMP Universal Screw | Hardened Zinc-Plated Steel | Countersunk Milling Pocket Head | @Pack of 500 | by Wurth
The ASSY®plus 4 CSMP universal screw is designed for optimal performance in wood applications, featuring a hardened zinc-plated steel construction and a unique countersunk milling pocket head. Ideal for interior fitting, cabinet construction, and furniture assembly, this screw ensures gap-free attachment close to edges without pre-drilling, making it perfect for professionals seeking reliability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMP Universal Screw | Hardened Zinc-Plated Steel | Countersunk Milling Pocket Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 17811440
Alternatively Known As: Wood screw, Countersunk wood screw, Zinc plated wood screw, Partial thread screw, Universal wood screw
Technical Specifications
- Dimensions (H x L x W): 2.5mm x 40mm x 7.8mm
- Weight: 0.0022 kg
Key Features
- Universal partial thread with countersunk head and milling pockets
- Suitable for gap-free attachment close to edges without pre-drilling in wood-wood connections
- Ideal power transmission due to RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and clean drilling without chipping
- Maximum drilling performance with through drilling cutting edges similar to Forstner bits
- Centring pin prevents slipping on hard surfaces
- Gentle thread start for quick screwing
- Optimised milling pockets for easy countersinking and no chipping in coated chipboards
- Perfect fit of 90° head in metal countersinks
- Asymmetrical single thread for maximum reliability and excellent anchoring in wood
- Hardened steel material with zinc plating for durability
Professional Installation Requirements
- Recommended installation by professionals familiar with wood screw applications for optimal performance and safety.
Applications
- Interior fitting
- Cabinet construction
- Store construction
- Exhibition stand construction
- Furniture assembly
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product approved under ETA-11/0190.
Available Now
The Wurth ASSY®plus 4 CSMP universal screw is available for immediate purchase, ideal for interior fitting, cabinetry, furniture, and exhibition stand construction.
