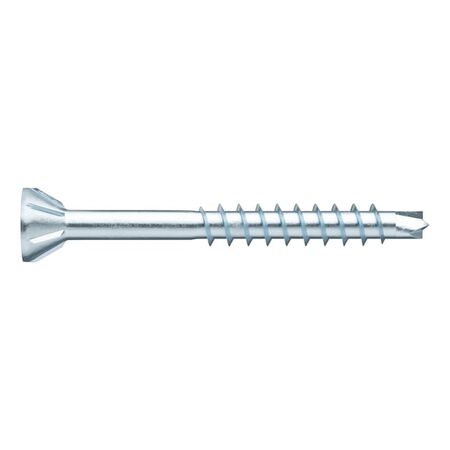

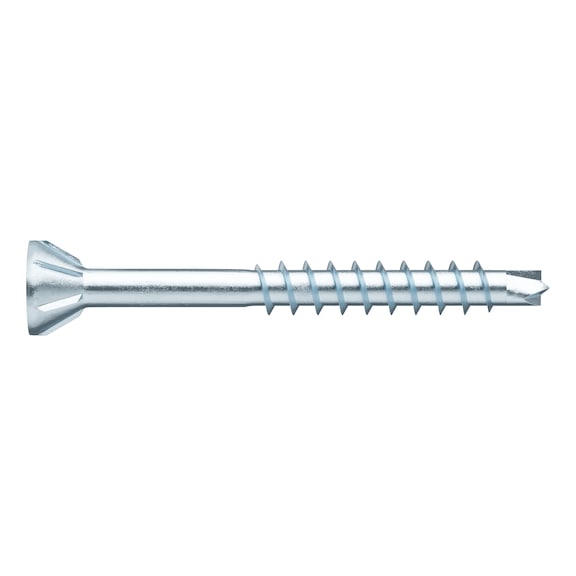

ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | 60° Countersunk Milling Head | @Pack of 500 | by Wurth
The ASSYplus 4 CSMR 60 FLOOR flooring screw is designed for precision fastening with its 60° countersunk milling head and hardened zinc plated steel construction. Ideal for furniture assembly and interior fittings, this screw ensures gap-free fastening close to edges without pre-drilling, making it perfect for tongue and groove floorboards. With an advanced centring drill tip and RW20 drive, it offers optimal power transmission and stability.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | 60° Countersunk Milling Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178694045
Alternatively Known As: Flooring screw, Wood screw, Countersunk screw, Partial thread screw, RW20 drive screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 45 mm
- Thread length: 26 mm
- Screw-thread length with drill tip: 29.5 mm
- Head type: 60° countersunk with milling ribs
- Head diameter: 7 mm
- Head height: 4.2 mm
- Internal drive: RW20
- Thread type: Wood screw thread, partial thread
- Thread form: Single start thread
- Core diameter: 2.5 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface finish: Zinc plated
- Max screw-in angle: 90°
- Min screw-in angle: 0°
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood, construction timber, OSB, chipboard, solid wood panel
- Approval: ETA-11/0190
- Product weight per item: 2.658 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.2mm x 45mm x 7mm
- Weight: 0.0027 kg
Key Features
- Partial thread wood screw with small 60° countersunk milling head
- Suitable for gap-free fastening close to edges without pre-drilling tongue and groove floorboards or panels (OSB, chipboards)
- Ideal power transmission with RW20 drive for more power and stability
- Tight-fit recess for precise positioning and fewer bit changes
- Advanced centring drill tip for clean drilling without chipping
- High milling performance due to milling ribs on countersunk head
- Asymmetrical single thread for maximum screw connection reliability
- Easy countersinking in hardwood, softwood, and high knot content wood
- Reduced splitting of components when immersing the screw
- Compatibility with previous AW drive
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially in structural applications.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Comes with Wurth's standard product warranty against manufacturing defects.
Available Now
The Wurth ASSYplus 4 CSMR 60 Floor Flooring Screw is available for immediate purchase, ideal for indoor dry or sheltered area flooring and panel fastening applications.
