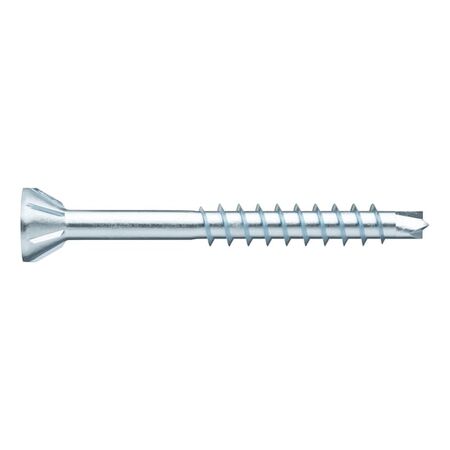

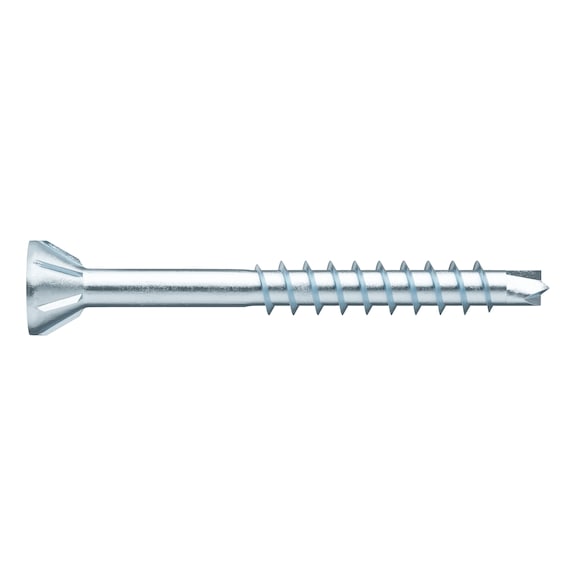

ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | Countersunk Milling Head | @Pack of 1000 | by Wurth
The ASSYplus 4 CSMR 60 FLOOR flooring screw is designed for precision fastening with its unique 60° countersunk milling head and hardened zinc plated steel construction. Ideal for furniture assembly, cabinet making, and interior fitting, this screw ensures gap-free fastening close to edges without pre-drilling, making it perfect for tongue and groove floorboards. Experience enhanced power transmission and stability with the RW drive, ensuring a reliable connection in various wood types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | Countersunk Milling Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 178693530
Alternatively Known As: Flooring screw, Countersunk wood screw, Partial thread screw, Milling head screw, RW drive screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 30 mm
- Thread length: 14 mm
- Screw-thread length with drill tip: 17.5 mm
- Head type: Countersunk head 60 degree with milling ribs
- Head diameter: 6 mm
- Head height: 3.5 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Single start thread
- Core diameter: 2.1 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), Wood, Derived timber product, Hardwood, LVL, Softwood, Construction timber (KVH)
- Approval: ETA-11/0190
- Product weight per item: 1.316 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 30mm x 6mm
- Weight: 0.0013 kg
Key Features
- Special partial thread screw with small 60° countersunk milling head.
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards) in indoor dry or sheltered areas.
- Ideal power transmission thanks to RW drive.
- More power due to larger contact area at the bit.
- More stability, one-handed working, precise positioning due to tight-fit recess and perfect fit of the bit.
- Fewer bit changes, one bit for many screw diameters.
- Compatibility with previous AW drive.
- Precise positioning and very clean drilling due to advanced centring drill tip.
- Positioning and drilling without chipping.
- Maximum drilling performance and precise drilling process through drilling cutting edges (similar to Forstner bits).
- Precise positioning on hard surfaces without slipping thanks to centring pin.
- Quick screwing due to gentle start of thread.
- Easy countersinking in hardwood/softwood with high knot content as well as hard wood fibreboards.
- Small 60° countersunk head and narrower geometry for use in seams or with tongue-and-groove connections.
- Reduced splitting of component to be mounted when immersing the screw.
- Very high milling performance due to milling ribs located at the countersunk head.
- Maximum reliability of the screw connection due to asymmetrical single thread.
- Optimal matching of drill tip and thread geometry.
- Excellent anchoring in wood due to asymmetrical arrangement of thread flanks.
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 4785 – Wood Screws and AS/NZS 3566 – Self-drilling screws for the building and construction industry
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable hardened steel construction extends product life reducing waste.
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSYplus 4 CSMR 60 Floor Flooring Screw is available for immediate purchase, ideal for furniture, cabinet, store, exhibition stand construction, and interior fitting applications.
