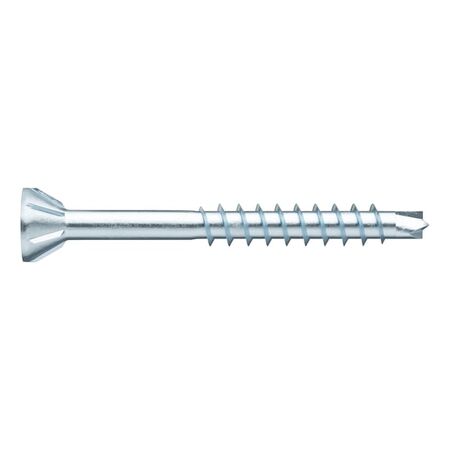

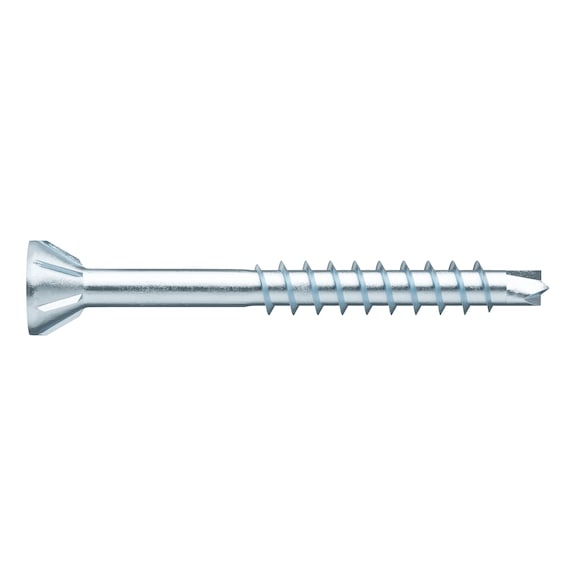

ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | Countersunk Milling Head | @Pack of 1000 | by Wurth
The ASSYplus 4 CSMR 60 FLOOR flooring screw is designed for precision fastening with its hardened zinc plated steel construction and unique 60° countersunk milling head. Ideal for furniture assembly and interior fitting, this screw ensures gap-free fastening close to edges without pre-drilling, making it perfect for tongue and groove floorboards. Experience optimal power transmission and stability with the RW drive, ensuring a reliable connection in various wood types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | Countersunk Milling Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 178693535
Alternatively Known As: Flooring screw, partial thread wood screw, countersunk milling head screw, RW10 drive screw, zinc plated flooring screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 35 mm
- Thread length: 18 mm
- Screw-thread length with drill tip: 21.5 mm
- Head type: Countersunk head 60 degree with milling ribs
- Head diameter: 6 mm
- Head height: 3.5 mm
- Internal drive: RW10
- Thread type: Wood screw thread, partial thread
- Thread form: Single start thread
- Core diameter: 2.1 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), wood, derived timber product, hardwood, LVL, softwood, construction timber (KVH)
- Approval: ETA-11/0190
- Product weight per item: 1.521 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 35mm x 6mm
- Weight: 0.0015 kg
Key Features
- Special partial thread screw with small 60° countersunk milling head.
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards) in indoor dry or sheltered areas.
- Ideal power transmission thanks to RW drive with larger contact area at the bit.
- More stability, one-handed working, precise positioning due to tight-fit recess and perfect fit of the bit.
- Fewer bit changes, one bit for many screw diameters.
- Compatibility with previous AW drive.
- Precise positioning and very clean drilling due to advanced centring drill tip.
- Positioning and drilling without chipping.
- Maximum drilling performance and precise drilling process through drilling cutting edges similar to Forstner bits.
- Precise positioning on hard surfaces without slipping thanks to centring pin.
- Quick screwing due to gentle start of thread.
- Easy countersinking in hardwood/softwood with high knot content as well as hard wood fibreboards.
- Small 60° countersunk head with narrower geometry for use in seams or with tongue-and-groove connections.
- Reduced splitting of component when immersing the screw.
- Very high milling performance due to milling ribs located at the countersunk head.
- Maximum reliability of the screw connection due to asymmetrical single thread.
- Optimal matching of drill tip and thread geometry.
- Excellent anchoring in wood due to asymmetrical arrangement of thread flanks.
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- AS/NZS 4785 – Timber fasteners (applicable for wood screws and fasteners)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable hardened steel construction extends product life reducing waste.
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSYplus 4 CSMR 60 Floor flooring screw is available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
