ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | Countersunk Milling Head | @Pack of 500 | by Wurth

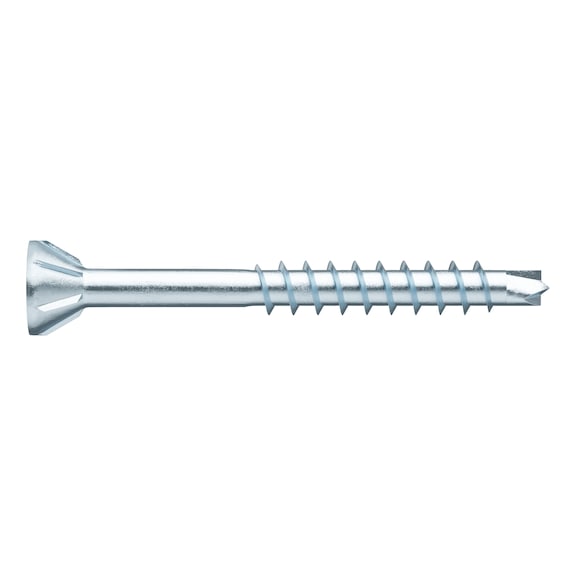

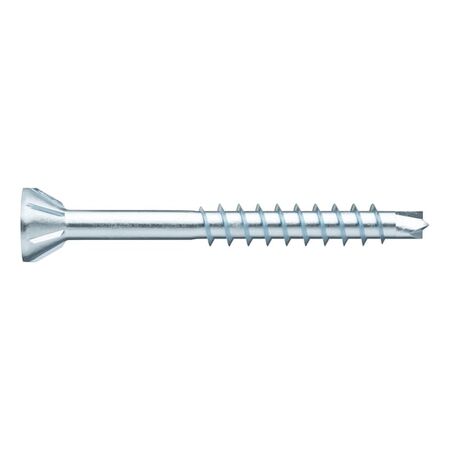

The ASSYplus 4 CSMR 60 FLOOR flooring screw is designed for precision fastening with its hardened zinc plated steel construction and unique 60° countersunk milling head. Ideal for furniture assembly and interior fitting, this screw ensures gap-free fastening close to edges without pre-drilling, making it perfect for tongue and groove floorboards. With advanced centring drill tip technology, it provides clean drilling and maximum reliability in wood applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | Countersunk Milling Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178693550
Alternatively Known As: Flooring screw, Countersunk wood screw, Partial thread screw, Milling head screw, RW drive screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 50 mm
- Thread length: 27 mm
- Screw-thread length with drill tip: 30.5 mm
- Head type: Countersunk head 60 degree with milling ribs
- Head diameter: 6 mm
- Head height: 3.5 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Single start thread
- Core diameter: 2.1 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), wood, derived timber product, hardwood, LVL, softwood, construction timber (KVH)
- Product weight per item: 2.106 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 50mm x 6mm
- Weight: 0.0021 kg
Key Features
- Special partial thread screw with small 60° countersunk milling head.
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards) in indoor dry or sheltered areas.
- Ideal power transmission thanks to RW drive with larger contact area at the bit.
- More stability and precise positioning due to tight-fit recess and perfect bit fit.
- Compatibility with previous AW drive and fewer bit changes needed.
- Advanced centring drill tip for precise positioning and very clean drilling without chipping.
- Maximum drilling performance with drilling cutting edges similar to Forstner bits.
- Centring pin prevents slipping on hard surfaces.
- Gentle thread start for quick screwing.
- Easy countersinking in hardwood, softwood with high knot content, and hard wood fibreboards.
- Small 60° countersunk head with narrower geometry for use in seams or tongue-and-groove connections.
- Reduced splitting of components when immersing the screw.
- High milling performance due to milling ribs at the countersunk head.
- Maximum reliability of screw connection due to asymmetrical single thread.
- Optimal matching of drill tip and thread geometry.
- Excellent anchoring in wood due to asymmetrical thread flank arrangement.
Professional Installation Requirements
- Professional installation recommended to ensure correct fastening and safety, especially in structural or load-bearing applications.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable hardened steel construction extends product life reducing waste.
Warranty Information
Warranty details available upon request from Wurth; product is ETA-11/0190 approved.
Available Now
The Wurth ASSYplus 4 CSMR 60 Floor Flooring Screw is available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
