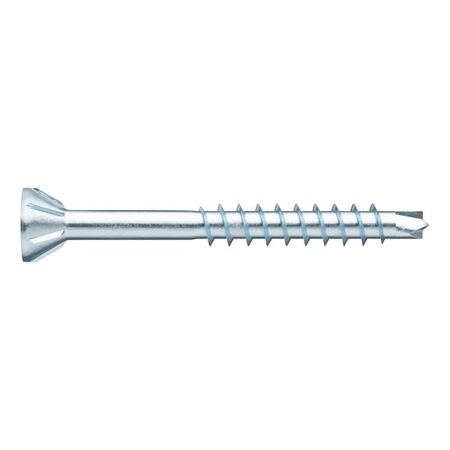

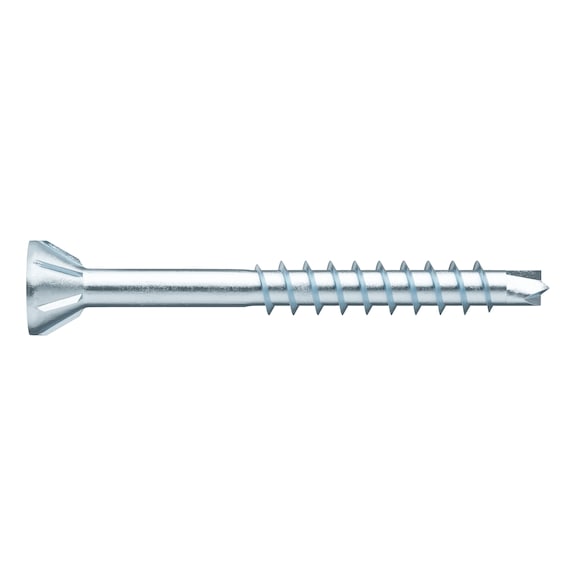

ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | Countersunk Milling Head | @Pack of 500 | by Wurth
The ASSYplus 4 CSMR 60 FLOOR flooring screw is designed for precision fastening with its special partial thread and 60° countersunk milling head. Ideal for furniture assembly and interior fitting, this screw ensures gap-free fastening close to edges without pre-drilling, making it perfect for tongue and groove floorboards. Built from hardened zinc plated steel, it offers excellent anchoring and durability for various wood types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSYplus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc Plated Steel | Countersunk Milling Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178694050
Alternatively Known As: Flooring screw, Countersunk wood screw, Partial thread screw, Milling head screw, RW drive screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 50 mm
- Thread length: 26 mm
- Screw-thread length with drill tip: 29.5 mm
- Head type: Countersunk head 60 degree with milling ribs
- Head diameter: 7 mm
- Head height: 4.2 mm
- Internal drive: RW20
- Thread type: Wood screw thread
- Thread design: Partial thread
- Design: With shaft
- Thread form: Single start thread
- Core diameter: 2.5 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), wood, derived timber product, hardwood, LVL, softwood, construction timber (KVH), OSB, chipboard, solid wood panel (SWP)
- Product weight per item: 2.840 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.2mm x 50mm x 7mm
- Weight: 0.003 kg
Key Features
- Special partial thread screw with small 60° countersunk milling head
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards)
- Ideal power transmission with RW drive for more power and stability
- Tight-fit recess for precise positioning and fewer bit changes
- Advanced centring drill tip for precise positioning and clean drilling without chipping
- Maximum drilling performance with drilling cutting edges similar to Forstner bits
- Centring pin prevents slipping on hard surfaces
- Gentle thread start for quick screwing
- Easy countersinking in hardwood, softwood, and high knot content wood
- Small 60° countersunk head with narrower geometry for seams or tongue-and-groove connections
- Reduced splitting of components when immersing the screw
- High milling performance due to milling ribs at the countersunk head
- Asymmetrical single thread for maximum screw connection reliability
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flank arrangement
Professional Installation Requirements
- Recommended installation by professionals or skilled personnel for optimal fastening performance and safety.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
- Floorboard and panel fastening in indoor dry or sheltered areas
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Product approved under ETA-11/0190 ensuring quality and reliability standards.
Available Now
The Wurth ASSYplus 4 CSMR 60 Floor Flooring Screw is available for immediate purchase, ideal for furniture, cabinet, store, exhibition stand construction, and interior fitting applications.
