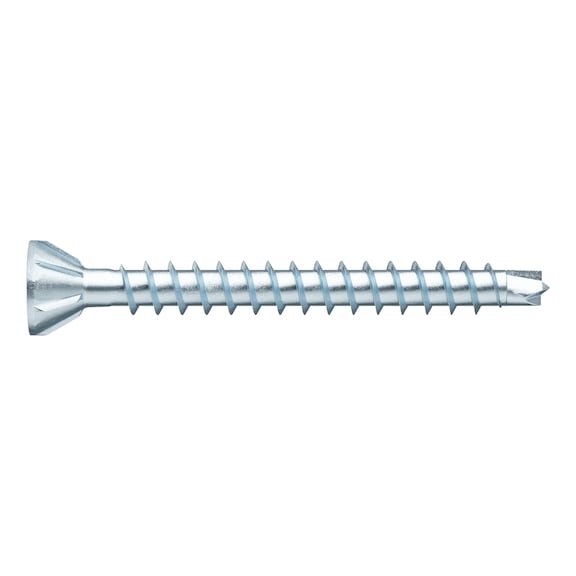

ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Head 60° | @Pack of 500 | by Wurth
The ASSY®plus 4 CSMR 60 FLOOR flooring screw is designed for precision fastening with its full thread and 60° countersunk milling head. Ideal for furniture assembly and interior fitting, this screw ensures optimal power transmission and stability, making it perfect for use in hardwood and softwood applications. Its advanced centring drill tip allows for clean drilling without chipping, while the RoHS-compliant construction guarantees reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Head 60° | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178683545
Alternatively Known As: Flooring screw, Wood screw, Countersunk wood screw, Zinc plated flooring screw, Full thread wood screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 45 mm
- Thread length: 37 mm
- Screw-thread length with drill tip: 40.5 mm
- Head type: Countersunk head 60 degree with milling ribs
- Head diameter: 6 mm
- Head height: 3.5 mm
- Internal drive: RW10
- Thread type: Wood screw thread
- Thread design: Full thread, single start thread
- Core diameter: 2.1 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90 degrees
- Min screw-in angle: 0 degrees
- Suitable materials: Board ply wood (BSP), wood, derived timber products, hardwood, LVL, softwood, construction timber (KVH)
- Product weight per item: 1.938 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 45mm x 6mm
- Weight: 0.002 kg
Key Features
- Full thread wood screw with small 60° countersunk milling head.
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards) in indoor dry or sheltered areas.
- Ideal power transmission with RW drive for more power due to larger contact area at the bit.
- High stability, one-handed working, precise positioning due to tight-fit recess and perfect bit fit.
- Fewer bit changes, one bit for many screw diameters, compatible with previous AW drive.
- Advanced centring drill tip for precise positioning and very clean drilling without chipping.
- Maximum drilling performance with drilling cutting edges similar to Forstner bits.
- Centring pin prevents slipping on hard surfaces.
- Gentle thread start for quick screwing.
- Easy countersinking in hardwood/softwood with high knot content and hard wood fibreboards.
- Small 60° countersunk head with narrower geometry for use in seams or tongue-and-groove connections.
- Reduced splitting of components when immersing the screw.
- Very high milling performance due to milling ribs at the countersunk head.
- Maximum reliability of screw connection due to asymmetrical single thread.
- Optimal matching of drill tip and thread geometry.
- Excellent anchoring in wood due to asymmetrical thread flank arrangement.
Professional Installation Requirements
- Recommended installation by professionals or skilled users for optimal fastening performance and safety.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant, ensuring reduced hazardous substances.
- Durable hardened steel construction extends product life, reducing waste.
Warranty Information
Product approved under ETA-11/0190, ensuring quality and reliability standards.
Available Now
The Wurth ASSY®plus 4 CSMR 60 Floor Flooring Screw is available for immediate purchase, ideal for furniture, cabinet, store, exhibition stand construction, and interior fitting applications.
