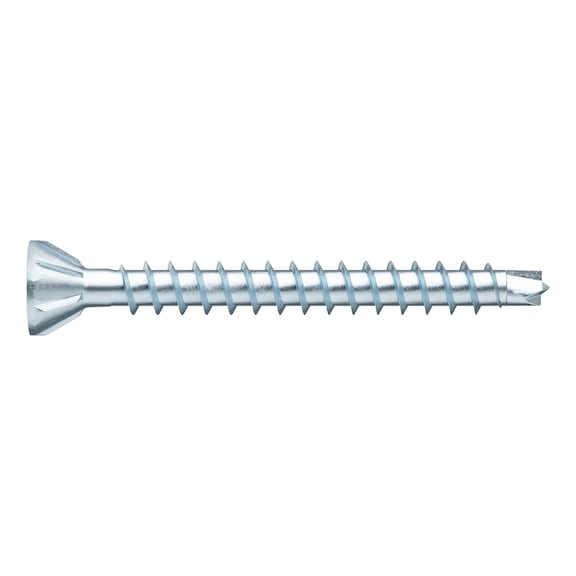

ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Milling Head 60° | @Pack of 500 | by Wurth
ASSY®plus 4 CSMR 60 FLOOR flooring screws are designed for optimal fastening in furniture assembly and interior fitting. Made from hardened zinc-plated steel, these screws feature a full thread and a 60° countersunk milling head, ensuring gap-free fastening without pre-drilling. Ideal for professionals, they provide excellent anchoring in various wood types, making them perfect for structural applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Milling Head 60° | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178684035
Alternatively Known As: Flooring screw, Wood screw, Countersunk screw, Milling head screw, RW20 drive screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 35 mm
- Thread length: 26 mm
- Screw-thread length with drill tip: 29.5 mm
- Head type: Countersunk head 60° with milling ribs
- Head diameter: 7 mm
- Head height: 4.2 mm
- Internal drive: RW20
- Thread type: Wood screw thread, full thread, single start
- Core diameter: 2.5 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90°
- Min screw-in angle: 0°
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood, construction timber, OSB, chipboard, solid wood panel
- Product weight per item: 2.078 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.2mm x 35mm x 7mm
- Weight: 1.04 kg
Key Features
- Full thread wood screw with small 60° countersunk milling head
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards)
- Ideal power transmission with RW20 drive
- Larger contact area at the bit for more power and stability
- Tight-fit recess for precise positioning and fewer bit changes
- Advanced centring drill tip for clean drilling without chipping
- High milling performance due to milling ribs at the countersunk head
- Asymmetrical single thread for maximum screw connection reliability
- Easy countersinking in hardwood, softwood, and high knot content wood
- Reduced splitting of components during screw immersion
- Optimal matching of drill tip and thread geometry
- Excellent anchoring in wood due to asymmetrical thread flanks
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety, especially in structural applications.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable zinc plating extends product life reducing waste
Warranty Information
Warranty details available upon request from Wurth; product is ETA-11/0190 approved.
Available Now
The Wurth ASSY®plus 4 CSMR 60 FLOOR flooring screw is available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
