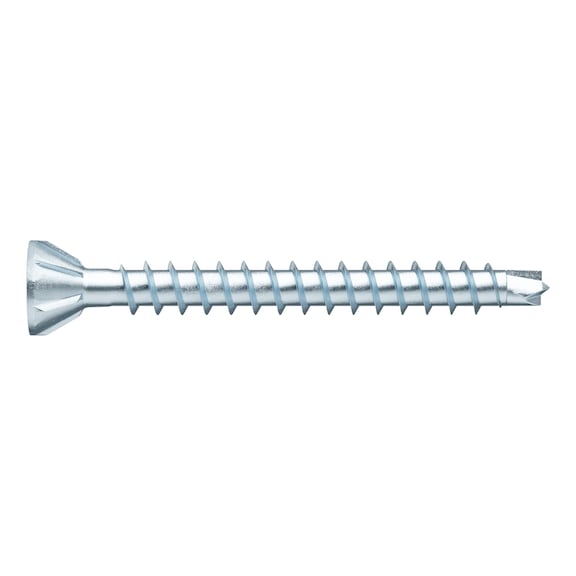

ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Head 60° | @Pack of 500 | by Wurth
The ASSY®plus 4 CSMR 60 FLOOR flooring screw is designed for gap-free fastening in wood, featuring a hardened zinc-plated steel construction and a full thread with a 60° countersunk milling head. Ideal for furniture assembly and interior fitting, this screw ensures optimal power transmission and precise positioning, making it perfect for professional installations.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Head 60° | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178684040
Alternatively Known As: Flooring screw, Wood screw, Countersunk screw, Zinc plated flooring screw, Full thread wood screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 40 mm
- Thread length: 31 mm
- Screw-thread length with drill tip: 34.5 mm
- Head type: Countersunk head 60° with milling ribs
- Head diameter: 7 mm
- Head height: 4.2 mm
- Internal drive: RW20
- Thread type: Wood screw thread, full thread, single start
- Core diameter: 2.5 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90°
- Min screw-in angle: 0°
- Suitable materials: Board ply wood (BSP), wood, derived timber products, hardwood, LVL, softwood, construction timber (KVH), OSB, chipboard, solid wood panel (SWP)
- Product weight per item: 2.532 g
- RoHS-compliant: Yes
- Approval: ETA-11/0190
- Dimensions (H x L x W): 4.2mm x 40mm x 7mm
- Weight: 1.27 kg
Key Features
- Full thread wood screw with small 60° countersunk milling head
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards)
- Ideal power transmission with RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and fewer bit changes
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and clean drilling without chipping
- High milling performance due to milling ribs at the countersunk head
- Asymmetrical single thread for maximum reliability and excellent anchoring in wood
- Easy countersinking in hardwood, softwood, and high knot content wood
- Small 60° countersunk head with narrower geometry for use in seams or tongue-and-groove connections
- Reduced splitting of components when immersing the screw
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and safety.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Warranty as per Wurth standard terms and conditions.
Available Now
The Wurth ASSY®plus 4 CSMR 60 FLOOR flooring screw is available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
