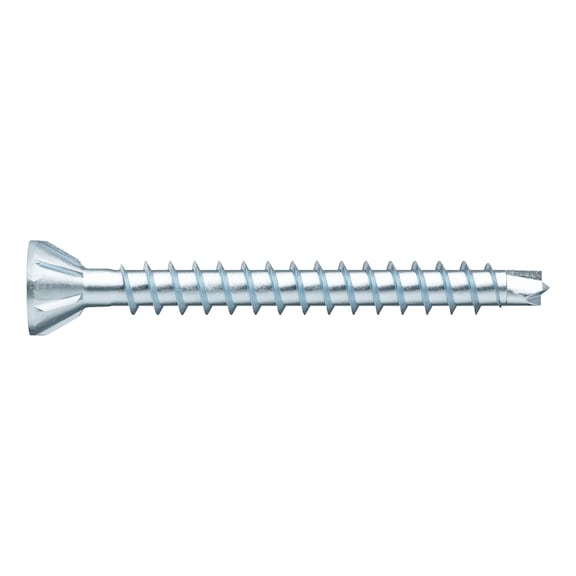

ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Head 60° | @Pack of 500 | by Wurth
The ASSY®plus 4 CSMR 60 FLOOR flooring screw is designed for precision fastening with its full thread and 60° countersunk milling head. Ideal for furniture assembly and interior fitting, this screw ensures gap-free fastening close to edges without pre-drilling. Made from hardened zinc-plated steel, it offers excellent anchoring and reduced splitting, making it perfect for various wood types.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Head 60° | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178684045
Alternatively Known As: Flooring screw, Wood screw, Countersunk screw, Zinc plated flooring screw, Full thread wood screw
Technical Specifications
- Nominal diameter: 4 mm
- Length: 45 mm
- Thread length: 36 mm
- Screw-thread length with drill tip: 39.5 mm
- Head type: Countersunk head 60° with milling ribs
- Head diameter: 7 mm
- Head height: 4.2 mm
- Internal drive: RW20
- Thread type: Wood screw thread, full thread, single start
- Core diameter: 2.5 mm
- Shape of tip: Drilling tip
- Material: Hardened steel
- Surface: Zinc plated
- Max screw-in angle: 90°
- Min screw-in angle: 0°
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood, construction timber, OSB, chipboard, solid wood panel
- Approval: ETA-11/0190
- Product weight per item: 2.420 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.2mm x 45mm x 7mm
- Weight: 0.00242 kg
Key Features
- Full thread wood screw with small 60° countersunk milling head
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards)
- Ideal power transmission with RW20 drive for more power and stability
- Precise positioning and very clean drilling due to advanced centring drill tip
- Maximum drilling performance with drilling cutting edges similar to Forstner bits
- Quick screwing with gentle thread start
- Easy countersinking in hardwood, softwood, and high knot content wood
- Reduced splitting of components when immersing the screw
- High milling performance due to milling ribs at the countersunk head
- Maximum reliability due to asymmetrical single thread
- Excellent anchoring in wood due to asymmetrical thread flanks
- Compatibility with previous AW drive
Professional Installation Requirements
- Professional installation recommended for optimal fastening and structural integrity, especially in construction and flooring applications.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Comes with Wurth's standard product warranty against manufacturing defects.
Available Now
The Wurth ASSY®plus 4 CSMR 60 FLOOR flooring screw is available for immediate purchase, ideal for furniture, cabinet, store, exhibition stand construction, and interior fitting applications.
