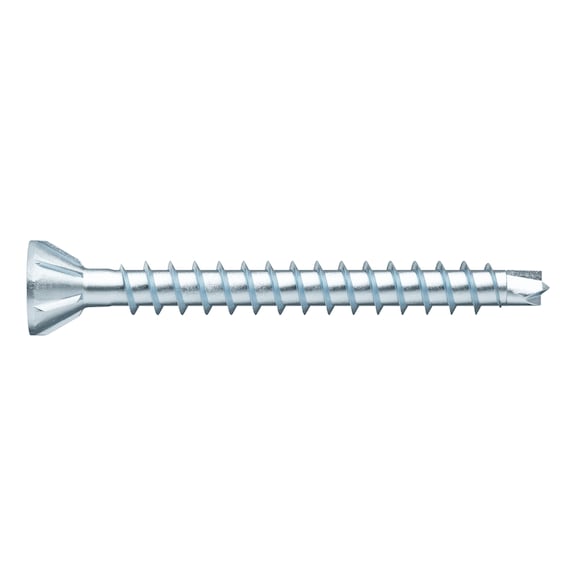

ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Milling Head | @Pack of 1000 | by Wurth
The ASSY®plus 4 CSMR 60 FLOOR flooring screw is designed for gap-free fastening in wood applications, featuring a hardened zinc-plated steel construction and a small 60° countersunk milling head. Ideal for professionals in furniture assembly and interior fitting, this screw ensures optimal power transmission and precise positioning, making it perfect for tongue-and-groove connections without pre-drilling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Milling Head | @Pack of 1000 | by Wurth
Brand: Wurth
SKU: 178683530
Alternatively Known As: Flooring screw, Wood screw, Countersunk screw, Milling head screw, ASSY plus flooring fastener
Technical Specifications
- Dimensions (H x L x W): 3.5mm x 30mm x 6mm
- Weight: 1.32 kg
Key Features
- Full thread wood screw with small 60° countersunk milling head.
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards).
- Ideal power transmission due to RW drive with larger contact area at the bit.
- One-handed working with precise positioning due to tight-fit recess and perfect bit fit.
- Compatibility with previous AW drive and fewer bit changes needed.
- Advanced centring drill tip for precise positioning and very clean drilling without chipping.
- Maximum drilling performance with drilling cutting edges similar to Forstner bits.
- Centring pin prevents slipping on hard surfaces.
- Gentle thread start for quick screwing.
- Easy countersinking in hardwood, softwood with high knot content, and hard wood fibreboards.
- Small 60° countersunk head with narrower geometry for use in seams or tongue-and-groove connections.
- Reduced splitting of components during screw immersion.
- High milling performance due to milling ribs at the countersunk head.
- Asymmetrical single thread for maximum screw connection reliability.
- Optimal matching of drill tip and thread geometry.
- Excellent anchoring in wood due to asymmetrical thread flank arrangement.
Professional Installation Requirements
- Recommended installation by professionals familiar with wood screw applications for optimal fastening and safety.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances.
- Durable hardened steel construction extends product life reducing waste.
Warranty Information
Product approved under ETA-11/0190, ensuring quality and reliability standards.
Available Now
The Wurth ASSY®plus 4 CSMR 60 FLOOR flooring screw is available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
