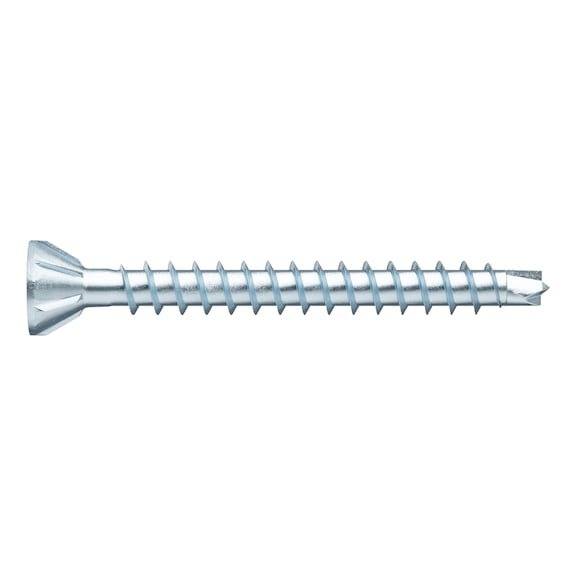

ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Head | @Pack of 250 | by Wurth
The ASSY®plus 4 CSMR 60 FLOOR flooring screw is designed for optimal fastening in wood and derived timber products. With a hardened zinc-plated steel construction and a full thread countersunk milling head, it ensures gap-free fastening close to edges without pre-drilling. Ideal for professional applications like furniture assembly and interior fitting, this screw offers excellent anchoring and reduced splitting for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Nominal diameter: 4 mm
- Length: 60 mm
- Thread length: 51 mm
- Screw-thread length with drill tip: 54.5 mm
- Head type: Countersunk head 60° with milling ribs
- Head diameter: 7 mm
- Head height: 4.2 mm
- Internal drive: RW20
- Thread type: Wood screw thread, full thread, single start
- Core diameter: 2.5 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface finish: Zinc plated
- Max screw-in angle: 90°
- Min screw-in angle: 0°
- Suitable materials: Board plywood, wood, derived timber products, hardwood, LVL, softwood, construction timber, OSB, chipboard, solid wood panel
- Approval: ETA-11/0190
- Product weight per item: 3.252 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 4.2mm x 60mm x 7mm
- Weight: 0.81 kg
Key Features
- Full thread wood screw with small 60° countersunk milling head
- Suitable for gap-free fastening close to edges without pre-drilling tongue and groove floorboards or panels (OSB, chipboards)
- Ideal power transmission with RW drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and one-handed working
- Compatibility with previous AW drive
- Advanced centring drill tip for clean drilling without chipping
- High milling performance due to milling ribs at the countersunk head
- Asymmetrical single thread for maximum reliability and excellent anchoring in wood
- Easy countersinking in hardwood, softwood, and high knot content wood
- Reduced splitting of components when immersing the screw
Professional Installation Requirements
- Professional installation recommended for optimal fastening performance and structural integrity, especially in flooring applications.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Wurth offers standard manufacturer warranty covering defects in materials and workmanship.
Available Now
The Wurth ASSY®plus 4 CSMR 60 FLOOR Flooring Screw is available for immediate purchase, ideal for indoor dry or sheltered flooring and panel fastening applications.
