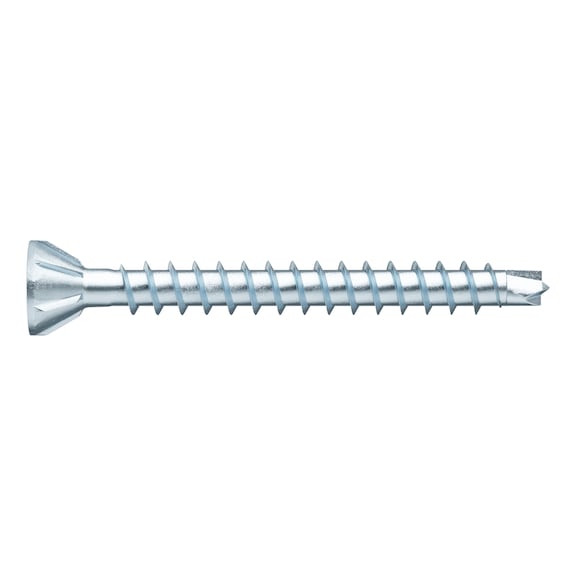

ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Milling Head | @Pack of 500 | by Wurth
The ASSY®plus 4 CSMR 60 FLOOR flooring screw is designed for precision fastening with its full thread and small 60° countersunk milling head. Ideal for furniture assembly and interior fitting, this screw ensures gap-free fastening close to edges without pre-drilling. Made from hardened zinc-plated steel, it offers excellent anchoring in wood and is RoHS-compliant for reduced hazardous substances.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ASSY®plus 4 CSMR 60 FLOOR Flooring Screw | Hardened Zinc-Plated Steel | Full Thread Countersunk Milling Head | @Pack of 500 | by Wurth
Brand: Wurth
SKU: 178683540
Alternatively Known As: Flooring screw, Wood screw, Countersunk screw, Milling head screw, RW10 drive screw
Technical Specifications
- Nominal diameter: 3.5 mm
- Length: 40 mm
- Thread length: 32 mm
- Screw-thread length with drill tip: 35.5 mm
- Head type: Countersunk head 60° with milling ribs
- Head diameter: 6 mm
- Head height: 3.5 mm
- Internal drive: RW10
- Thread type: Wood screw thread, full thread, single start
- Core diameter: 2.1 mm
- Tip shape: Drilling tip
- Material: Hardened steel
- Surface finish: Zinc plated
- Max screw-in angle: 90°
- Min screw-in angle: 0°
- Suitable materials: Board ply wood, wood, derived timber products, hardwood, LVL, softwood, construction timber
- Approval: ETA-11/0190
- Product weight per item: 1.75 g
- RoHS-compliant: Yes
- Dimensions (H x L x W): 3.5mm x 40mm x 6mm
- Weight: 0.002 kg
Key Features
- Full thread wood screw with small 60° countersunk milling head
- Suitable for gap-free fastening close to edges without pre-drilling of tongue and groove floorboards or panels (OSB, chipboards)
- Ideal power transmission with RW10 drive
- Larger contact area at the bit for more power
- Tight-fit recess for precise positioning and fewer bit changes
- Compatibility with previous AW drive
- Advanced centring drill tip for precise positioning and clean drilling without chipping
- High milling performance due to milling ribs at the countersunk head
- Asymmetrical single thread for maximum reliability and excellent anchoring in wood
- Easy countersinking in hardwood, softwood, and high knot content wood
- Small 60° countersunk head for use in seams or tongue-and-groove connections
- Reduced splitting of components when immersing the screw
Professional Installation Requirements
- Installation by a professional or experienced tradesperson is recommended to ensure proper fastening and structural integrity.
Applications
- Furniture assembly
- Cabinet making
- Store construction
- Exhibition stand construction
- Interior fitting
Standards & Compliance
- Complies with AS/NZS 1170 – Structural Design Actions (Wind, Earthquake, Snow Loads)
Environmental Benefits
- RoHS-compliant ensuring reduced hazardous substances
- Durable hardened steel construction extends product life reducing waste
Warranty Information
Comes with Wurth's standard product warranty against manufacturing defects.
Available Now
The Wurth ASSY®plus 4 CSMR 60 FLOOR Flooring Screw is available for immediate purchase, ideal for furniture, cabinet, and interior fitting applications.
